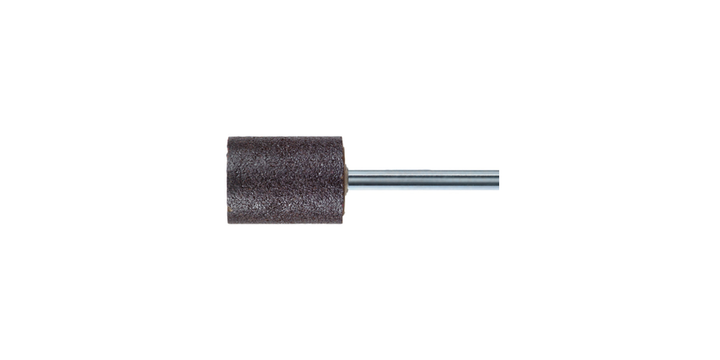

Pferd Mounted Point ZY0816/6 ADW46L6B 346877

Benefits

• Mounted points in hardness grade L are manufactured from a mix of white and dark red aluminium oxide in a high-quality resinoid bond.
• This relatively soft bond contains grinding additives and, in combination with the grit mix, leads to exceptionally high stock remova l rates and a long tool life.
• The hardness grade L is particularly suited for surface applications on stainless steel (INOX) and for general use applications on non-ferrous metals and bronze.
• Application examples :
• Grinding on high-temperature alloy components.
• Rough grinding of high-grade steel (INOX) castings.
• Grinding of workpieces made of nonferrous metals.

Features

• Cool grinding on temperature-sensitive materials.
• High grinding comfort due to low-vibration grinding.

Specifications

• Grit size : 46
• Shank diameter : 6 mm
• Shank length : 40 mm
• Burrs Diameter : 8 mm
• Burrs Thickness : 16 mm
• Max. Speed : 119.300 Rpm

Technical Spec

• Netto Weight: 0.012 KG
• Unit Demension: 56 X 8 X 8 MM
• Height Demension: 8.000
• Length Demension: 56.000
• Width Demension: 8.000
• Type: Cylindrical
• Dimension uom: 56.000
