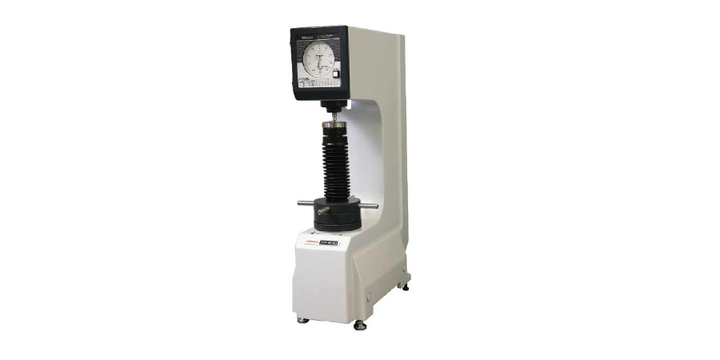

MITUTOYO Hardness HR-210MR 963-220-30E

HARDNESS HR-210MR 963-220-30E

Benefits

Basic type for measure Rockwell hardness with automatic pre setting dial indicator,easy to measure hardness with automatic operation.

Features

The newly designed frame provides maximum clearance for positioning the work piece, all you need is a flat table for mounting these testing machines.

• very simple to operate: the analogue types HR 210 use an automatic presetting dial gauge.

Specifications

• Supported Hardness : Rockwell Hardness
• Primary test force(N) : 98.07
• test force(N) Superficial : -
• Hardness Display : Analog
• Resolution : 0.5HR Graduation
• Preliminary test force (handling with support) : Automatic Pre setting Dial Indicator
• Preliminary test force switching : -
• Total test force switching : weight change
• Total test force operation :Motor Drive, Button Start
• Test Force Duration : Fixed 3 to 3,5s or manual operation
• Maximum speciment height : 180 MM(100 MM if cover is attach)
• Maximum Speciment Depth: 165 MM(from indenter axis to the frame)
• Function : -
• Data output interface : -
• Power Supply : 100-240v AC 12A(AC adapter DC 12V 3.5A)
• External Dimensions : 2 14(W) x 512(D) x 780(H) MM
• Mass : 46Kg

Technical Spec

• Netto Weight 49.000 KG
• Height Dimension 93.600
• Length Dimension 35.520
• Width Dimension 61.440
• Type Rockwell
• Lead Time 0
• Dimension uom 35.520
