Product Description

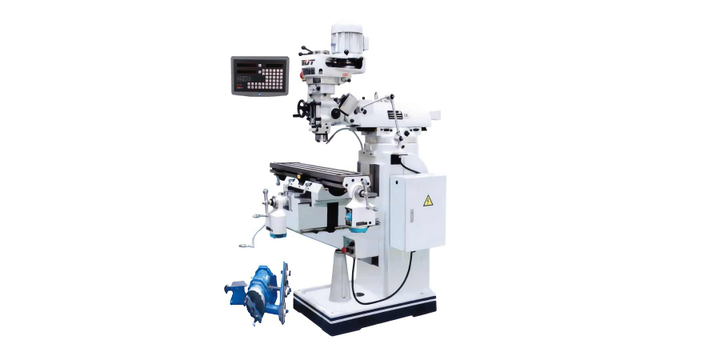

GUT Vertical Milling DRO2A + Dividing X6325
VERTICAL MILLING DRO2A + DIVIDING X6325
Benefits
- Multinational manufacturer leading machine tools in China.
- Machine design with quality, reliability, User-friendly and safety.
- Stable quality products for Industrial machine grade
Features
- Taiwan 3HP Belt type milling head with high speed and manual feed spindle
- Hardened and ground table surface
- Accessories : Draw bar Include, electrical cabinet, handle of oil pump, working lamp, vice machine, collet chuck set, Coolant System, DRO 2A, Clamping Kit, Tools & Tools box
Specifications
- Table Size 254 x 1270 mm
- Longitudinal travel 720 mm
- Cross travel 410 mm
- Vertical travel 400 mm
- Distance from spindle nose ti table surface 0-400 mm
- Spindle taper ISO30
- Spindle travel 127 mm
- Spindle speed 65-4500 rpm / 16 step
- Spindle motor 3 HP
- Head swivel 90 Deg
- Head tilting 45 Deg
- The spesification are subject to modification and improvement without noti ce
Technical Spec
- Netto Weight 1410.000 KG
- Unit Dimension 170X168X219.5CM
- Height Dimension 239.500
- Length Dimension 190.000
- Width Dimension 188.000
- Type VERTICAL MILLING MACHINE
- Dimension uom 190.000
AU $ 24,860.19
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
