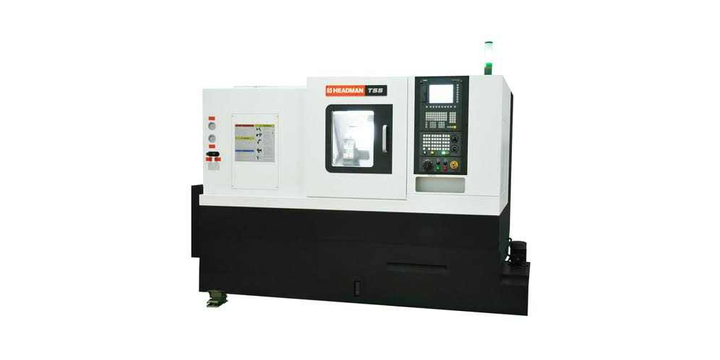

GUT Cnc Lathe Machine T55/500 With Fanuc

Benefits

• Multinational manufacturer leading machine tools in China.
• Machine design with quality, reliability, User-friendly and safety.
• Stable quality products for Industrial machine grade

Features

• High rigidity, high precision, high speed, which can realize turning replace the grinding and combination of finish turning and rough turning.
• Suitable for finish turning condition of various parts. Ideal choice for high efficiency machining / high precision machining.
• Biult-in motor spindle is optional (high speed, high precision, high stability and small vibration).
• The thermal compensation can be equipped to improve machining accuracy (30% higher) and stability.
• Plentiful configurations. The various mechanical interfaces, hydraulic interfaces, electric interfaces and software interfaces can.
• Be equippes for the automatic machining environment, to meet the customer' requirements for the unmanned machining.

Specifications

• Max. swing diameter : Dia 550 mm
• Max machining diameter : Dia 330 mm
• Max machining length : 516 mm
• Spindle bore : Dia 62 mm
• X axis travel : 190 mm
• Z axis travel : 561 mm
• Spindle speed : 4000 rpm
• Spindle motor power : 11/15 kw
• No. of tool station : 8
• Controller : Fanuc
• Turret locking type : hydraulic
• Boring tool size : Dia 40 mm
• Positioning accuracy : 0,008/0,008 mm
• Repeatability positioning accuracy : 0,003/0,003
• Dimension (L/W/H) : 2805 x 1780 x 1775 mm
• Weight : 3820 kg
