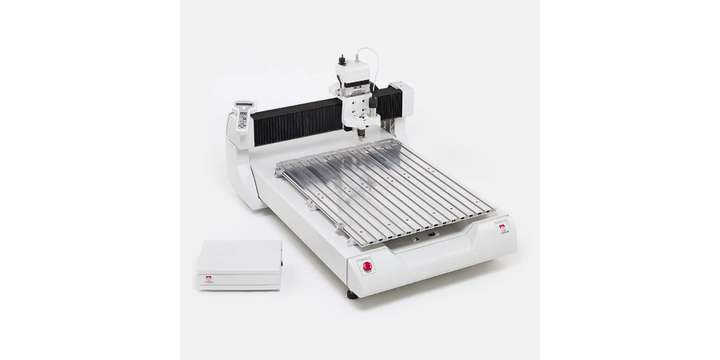

Gravograph Engraving Machine IS7000 200W 47916
Gravograph Engraving Machine IS7000 200W 47916
Brand:
GRAVOGRAPH
Model:
47916
Product Description

GRAVOGRAPH Engraving Machine IS7000 200W 47916

Benefits

  • 200 Watts continuous power spindle motor
  • concentric tightenin g vice
  • cylinder attachment Dia 120mm
  • range of spindles(collet,diamond, HF, ...)
  • automatic input/output control
  • lubricationsystem

Features

  • Totally compatible with any PC graphics software generating HPGL files.
  • Powerful spindle motor with direct current.
  • Adjustable rotation speed from 13000 to 20000 rpm for machining of various materials.
  • Rigid monobloc frame in welded steel.
  • 880 mm clearance between columns.
  • A complete range of spindles,clampi ng accessories and tools to suit the evolution of applications.
  • Gravographs software GravoStyle allows you to c reate and carry out your work on IS tables with efficiency.
  • An ext ernal and perfectly secure rack for performance of electronics allowing optimised completion times.

Specifications

  • Type : Engraving Machine
  • X & Y axes
  • Engraving Area IS7000 : 610 x 815 MM
  • Flatness Tolerence : 0,2 MM
  • Maximum clearanc e in X between columns : 880 MM
  • Maximum clearance in Y unlimited
  • Z axis
  • Spindletravel : 80 MM
  • Spindle clearance with cl amping table : 80 MM
  • Spindle clearance with vice : 140 MM
  • Mo vements transmission byballbearing lead screws
  • Spindle
  • Tool diameter : 4,36 MM
  • Rotation speed : 13-20000 tr/mn
  • Servo mo tor : 70 W
  • Standardclamping system
  • Clamping table
  • Noise level - according to ISO11201 regulation
  • Net Weight : 220 Kg

Technical Spec

  • Netto Weight: 220.000 KG
  • Unit Demension: 1093 X 1420 X 735 MM
  • Height Demension: 735.000
  • Length Demension: 1093.000
  • Width Demension: 1420.000
  • Color: 70-200 W
  • Type: Engraving Machine
  • Dimension uom:1093.000
