Product Description

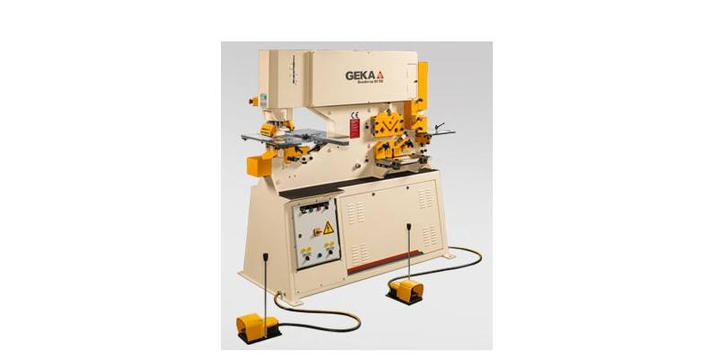

GEKA Hydraulic Iron Working Bendicrop 60ST
HYDRAULIC IRON WORKING BENDICROP 60ST
Benefits
- Machine Frame : Built with a Mono Block ideal on Top of the line CNC Machining and Turning centers using state of the art CADCAM software. All machining is done by Maquinaria GEKA S.A. with quality European Steel.
- Hydraulic System : Built using quality components including vickers directional valve and ABB motors
- Eletrical System : Built using quality electrical components consisting of Telemecanique, Omron
- Heat Treatment : All heat treatment of blades and other accessories are done in house
- Proven quality , design and craftsmanship
- Produced & manufactured in the European Union. Conversely other manufature GEKA is the only ironworker fully produc ed in the UE
- ISO 9001 and OHSAS certifications besides 90 years of experience and a continuous benchmarking policy
Features
- Precision punching table with milimeter stops
- Precision notching table with milimeter stops
- Universal electric bar stop
- Machine light for improved vision at work station
- 10 sets of round punches and dies
- Extended punching throat for large area flat plate working
- Safety guard
- Machine driven by 2 cylinders
- 5 working stations prepared with tooling for the cutting of angles, flats, round and square
- Bending station
- Triangular notching station
- Goose neck die- holder for punching of U-beam and I-beam sections on legs a nd webs
Specifications
- Shears of flatbar: 350x10mm
- Length of blade: 356 mm
- Shear for section iron L at 90deg.: 120x120x10mm
- Round bar: 45mm
- Square bar: 40mm
- Notching plate thickness: 10mm
- Notching angle of: 100mm
- Punching power: 600kN
- Max capacity: dia.40 x 11 mm
- Throat: 500mm
- Bending max. capacity: 150x10mm
- Motor: 5.5kW
- Net weight: 1750 kg
- Packaging dimension: 210x140x200cm
- Additional shipping fee, installation fee and comissioning fee (for technicians), for area outside JABODETABEK (including hotel and transportation)
Technical Spec
- Netto Weight 1750.000 KG
- Height Dimension 150.000
- Length Dimension 200.000
- Width Dimension 130.000
- Type Bendicrop
- Dimension uom 200.000
AU $ 40,609.58
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
