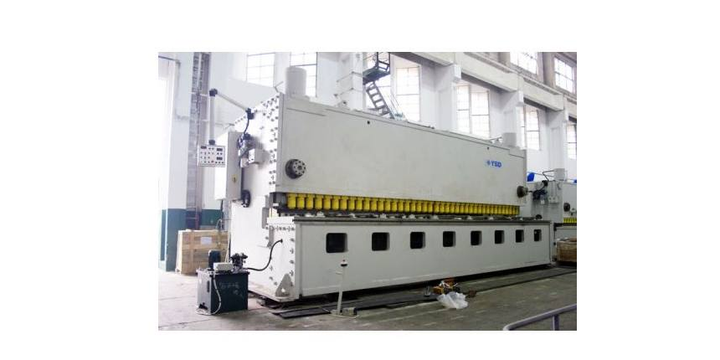

YSD Hydraulic Guillotine Shear HGS25/16
Benefits
The sturdy frame, stress relieved and the mono block manifold hydraulic construction, reduce pipelines and connections keep maintenance cost to a minimum and guarantee maximum service life
Features
A shearing machine is a machine tool for shear sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a blade
Specifications
- Shearing for max plate 16mm with length 2500mm
- Cutting thickness 16 MM Depth of Throat 300 MM
- Cutting Angle 0.5-3 Deg
- Blade clearance 0.08-1.6 MM
- Strokes 15-33 l/min(including min. stroke)
- Max. Stroke of Top Beam 160 MM
- Max. Cutting Force 730 kN
- Max. Plate holder Force 335 kN
- Max. Work Pressure of Hydraulic System 22 MPa
- Range of Back Gauge 10-1000 MM
Technical Specifications
- Netto Weight : 10000.000 KG
- Height Demension : 250.000
- Length Demension : 400.000
- Width Demension :250.000
- Type : Shearing Machine
¥ 806122.23
| Units | 折扣 | 单价 |
|---|---|---|
| 1 | - | ¥ 806122.23 |
数量:
EA
需要 90 个工作日的交货时间。
