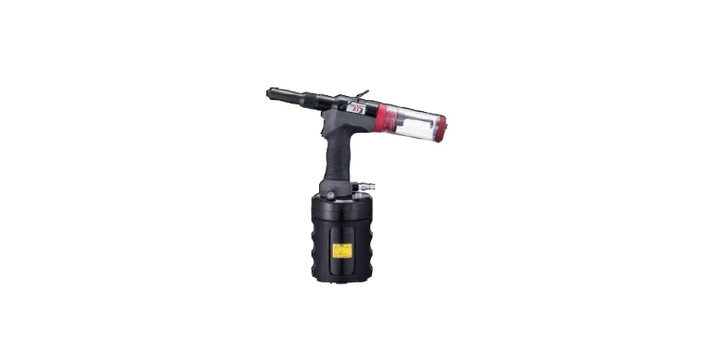

Nippon Pop Rivet Tool 4.8-6.4 XT3(76003-00004)

Benefits

• 76003-00001 - The ProSet XT3 can be used in a variety of applications, setting a large range of breakstem rivets, lockbolts and sealing plug sizes. The extremely large stroke of 26 mm allows the placement of longer rivets like Monobolt and
• Interlock in one set. The robust tool rubber base is designed to avoid damage. Latest technology lip seals maximise re-priming intervals. Piston bearing rings ensure maximum robustness and tool life.

Features

• Performance
• High force-to-weight ratio
• Quick disconnect nose housing and jaw case for easy maintenance and service
• Clear quick release mandrel collector bottle reduces downtime
• Integral exhaust valves for fast setting cycles
• Ergonomic
• Class-leading lightweig ht construction with balanced handling
• Comfortable, low activation force trigger
• Adjustable vacuum exhaust direction
• Economy & Safety
• Air isolation switch during MCS removal
• On/Off, left or
• right swivel air fitting provides flexibility and conserves energy

Specifications

• Weight, incl. nose equipment = 2.14 kg
• Weight, without nose equipment = 2.0 kg
• Pull force at 5.5 bar = 17.0 kN
• Force/Weight ratio = 7.94 kN/kg
• Stroke (min.) = 26 mm
• Cycle time (approximate) = 0.9 sec
• Air supply pressure (dry,
• fi ltered) = 5.0 - 7.0 bar
• Free air volume at 5.5 bar = 6.3 l
• Noise level = 78.4 dB(A)

Technical Specifications

• Netto : 4.2 KG
• Height : 45 CM
• Length : 49 CM
• Width : 25.3 CM
• Type : Rivet Gun
