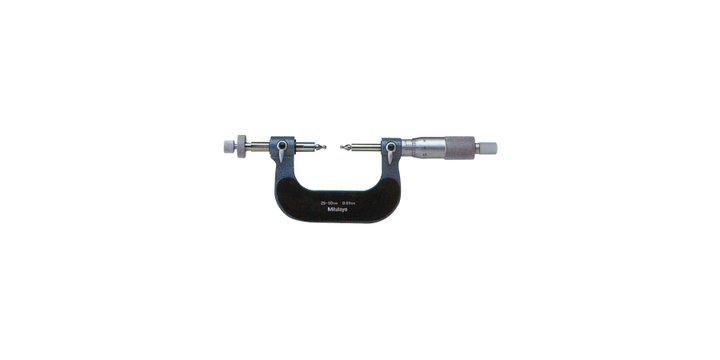

MITUTOYO Gear Micrometer 200-225/0.01MM 124-181

Gear Micrometer 200-225/0.01MM 124-181

Features

• For use with interchangeable ball-tipped anvil and spindle faces for measuring over-pin diameter of gears (sold separately)
• Vernierscal e in metric units for taking precise outside diameter (OD)measurements
• Ratchet-stop mechanism helps provide uniform pressurefor precise, repeatable measurement
• Satin chrome finish o n thimbleand sleeve helps resist rust and reduce glare
• Spindle and anvillocks to hold measurements in place

Specifications

• Gradient Spacing : 0.01 MM
• Maximum Measurement :200-225mm
• Measurement Accuracy : +/-0.006mm
• Range :200-225mm
• Resolution : 0.01mm
• Size Name : 200-225mm

Technical Spec

• Netto Weight 1.191 KG
• Unit Dimension 465 X 298 X 43 MM
• Height Dimension 43.000
• Length Dimension 465.000
• Width Dimension 298.000
• Material Steel
• Type Gear Micrometer
• Lead Time 170
• Dimension uom 465.000
