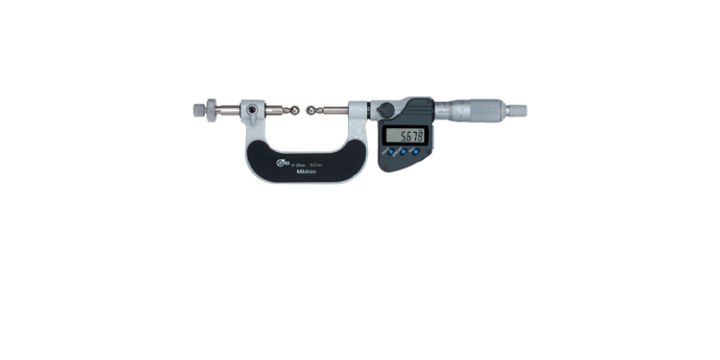

MITUTOYO Gear Micrometer 1-2/.00005IN 324-352-10

Benefits

• Zero-setting, Data hold, Data output, Preset, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
• Function Lock
• 2 Presets

Features

• IP65 water/dust protection (324 series).
• Measures over-pin diameter of gears with precision steel (carbide) ball-tipped measuring faces.
• With a standard bar except 0-25mm and 0-1 INC Model:
• Interchangeable ball anvil-spindle tips for various gear modules (0.5 - 5.25) are optional.
• With Ratchet Stop for constant force.
• With SPC output (Series 324).
• Supplied in fitted plastic case (0- 150mm /4 INC model 008 150mm model are wooden case).

Specifications

• Resolution:0.001mm or .00005"/0.001mm
• Display: LCD
• Battery: SR44 (1 pc.)
• Battery life: Approx.1.2 yrs under normal use
• Dust/Water protection level: IP65
• Range: 1-2 INC/25-50mm
• Accuracy: +/- .0002 INC
• Resolution: .00005"/0.001mm

Technical Specifications

• Netto Weight : 0.652 KG
• Unit Demension : 34.6 X 4.4 X 21.4 CM
• Material : Stainless Steel
• Type : Spindle Tip
