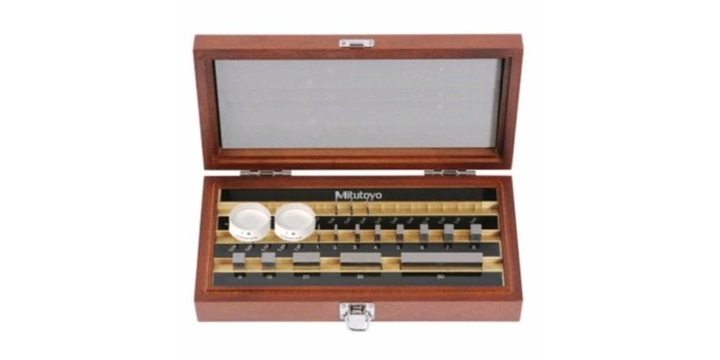

MITUTOYO/三丰 量块 CERA 套件 (16) 0 516-161-10
品牌: | MITUTOYO |
模型: | 516-161-10 |
产品描述
MITUTOYO Gauge Block Cera Set (16) 0 516-161-10
Benefits
- Precision ground and lapped to a specific thickness.
Features
- Made of ceramic material with superior surface finish
- Corrosion resistant
- No burrs caused by accidental mishandling Abrasion resistant
- Dimensionally stable
Specifications
- Hardness: 1350 HV
- Flexural strength by 3 point bending: 1270 Mpa
- Young’s Modulus x 10-4 : 20.6 MPa
- Poisson’s ratio: 0.3
- Specific gravity: 6.0
- Thermal conductivity: 2.9 W/m.k
- Content: 1, 1.25, 1.5, 2, 3, 5, 10, 15, 20, 25, 25.25, 30, 35, 40, 45, 50 MM, cerastone, optical parallel(t=12mm)
Technical Spec
- Netto Weight: 1.900 KG
- Unit Demension: 267 X 165 X 65 MM
- Height Demension: 6.500
- Length Demension: 26.300
- Width Demension: 16.300
- Material: Ceramic
- Type: Gauge Block CeramicLead Time120
- Dimension uom: 26.300
¥ 14910.62
| Units | 折扣 | 单价 |
|---|---|---|
| 1 | - | ¥ 14910.62 |
数量:
EA
需要 90 个工作日的交货时间。
物品将在指定的交货时间内准备好发货。
