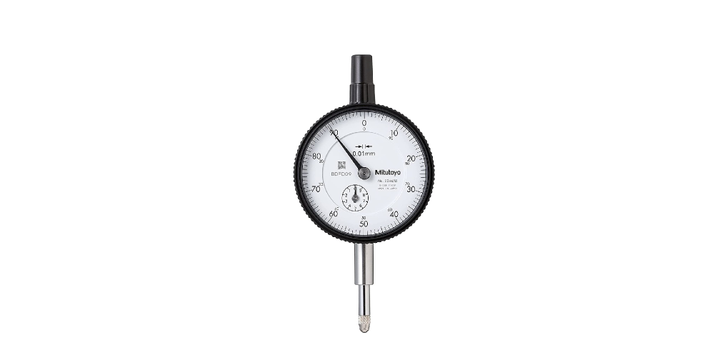

MITUTOYO Dial Indicator 10/0.01MM 2046AB

Benefits

• Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools
• No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration

Features

• This is a standard dial indicator

Specifications

• Range: 10 mm
• Range per rev.: 1 mm
• Graduation: 0.01 mm
• Scale: 0-100 (100-0)
• MPE any 1/10 revolution: 5 um
• MPE measuring range: 13 um
• H MPE (Hysteresis): 3 um
• R MPE (Repeatability): 3 um
• Measuring force: 0,4-1,4 N
• Type: EN ISO
• Stem: 8 mm
• Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
• Delivered: with certificate of inspection

Technical Specifications

• Netto : 0.175 KG
• Height : 8 CM
• Length : 13 CM
• Width : 6 CM
• Type : Dial
