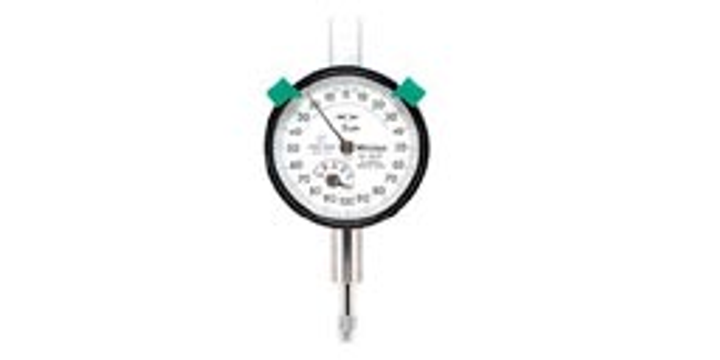

MITUTOYO Dial Indicator 1/0.002MM 1013S-10
Benefits
- Compact dial indicators with bezel diameters of Dia.31 or Dia.36MMfor restricted-space applications in gaging jigs.
Features
- Stem diameter 8MM, M2.5-0.45 thread size
- Measuring force: 1.5No r less
- Shockproof and jeweled bearing
Specifications
- Part Number 1013S-10
- Style Name 0-100
- Maximum Measurement0-1MM
- Additional Features Shockproof, Jeweled Bearing
- ColorWhite
- Display 0-100-0
- Measurement Accura cy +/-0.01MM
- Outside Diameter 41 MM
- Range 0-1MM
- Resol ution 0.002MM
- Shape LugBack
- Size 0-1MM Range
- Brand Na me Mitutoyo
- System ofMeasurement Metric
- Material Typ e Stainless Steel
- Stem OutsideDiameter 8 MM
- Thread Style M2 .5X0.45
¥ 1402.69
| Units | 折扣 | 单价 |
|---|---|---|
| 1 | - | ¥ 1402.69 |
数量:
EA
需要 90 个工作日的交货时间。
