Kabel Cat 6 :

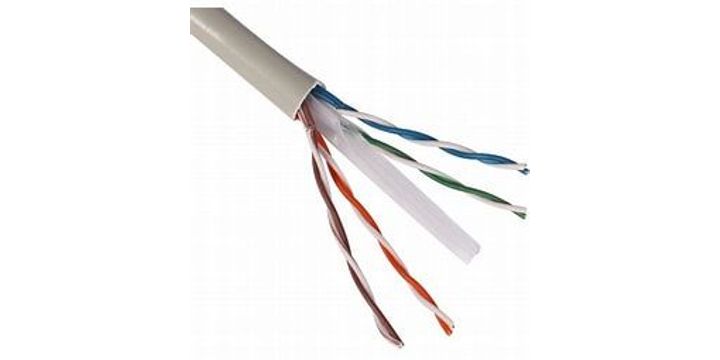

Bolein CAT6A U/UTP lan cable is 4 twisted-pairs, 23AWG solid pure copper (BC) conductors, High-density Polythene Insulation, Rip Cord, LSZH outer jacket, conforms to the standards ISO/IEC11801, TIA-568-C.2.

• Cat6A UTP LAN Cable
• 4 twisted pairs
• 23AWG cable diameter
• PVC + LSZH jacket material
• Color: grey, blue etc.

Normally, there are Cat5e, Cat6/Cat6e, Cat6A, Cat7 etc. categories LAN cable for indoor terminal cabling system and outdoor network communication. Besides, there are UTP (Unshielded Twisted Paired), STP (Shielded Twisted Paired), FTP (Foiled Twisted Paired) types for different application occasions.

About the conductor material, there are BC (Bare Copper: pure copper, non-oxygen copper), CCA (Copper Clad Aluminum) etc. for different cost budget.

For indoor network cable, the jacket material normally is PVC, if considering the fireproof feature, LSZH (Low Smoke Zero Halogen) is a better choice. If you have higher flame retardant requirement, it is also available. For outdoor network cable, PE jacket is standard one. Also, LSZH and flame retardant available.

Our Bolein brand network cables all are made of non-oxygen copper, and passed Fluke test. We have color box and wooden drum two different packing. If your quantity is more than 10,000 meter per color, we also can provide the custom logo and packing service.
