Hensel KV 7103 Circuit Breaker Box 102X197X92 With Terminal 1 Baris 3 Modul IP65
Product Description

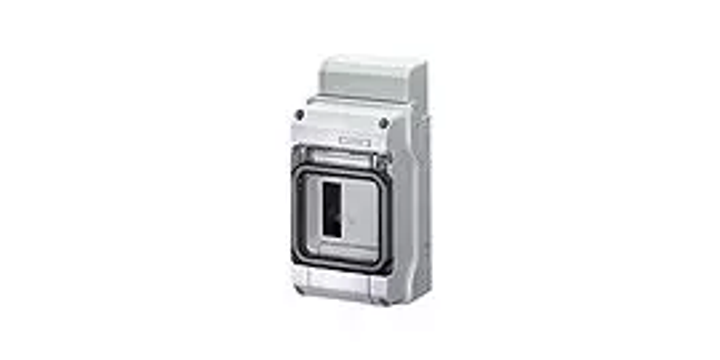

Hensel Circuit Breaker Box 102 x 197 x 92 mm with terminal 1 Row 3 Modules IP65 - KV 7103
Key Features
- 3 modules: 1 × 3 × 18 mm, 1-row
- Knockouts: Top and bottom walls, 2 × M20 each
- Terminal configuration per PE/N: 1 × 25 mm², 4 × 4 mm² Cu, FIXCONNECT® terminal technology
- For installation of DIN rail equipment up to 63 A, 35 mm top hat profile
- Transparent lid, sealable
- Locking device for hinged lid and sealing facility (see accessories)
- Cable entry cover included
- Protective cover can be cut out
- Color: Grey (RAL 7035)
Specifications
- Range: Enyboard Series
- Product Type: Junction Box
- IP Rating: IP65
- Rated Voltage: 400 V
- Material/Color: Polystyrene
¥ 409.57
| Units | 折扣 | 单价 |
|---|---|---|
| 1 | - | ¥ 409.57 |
