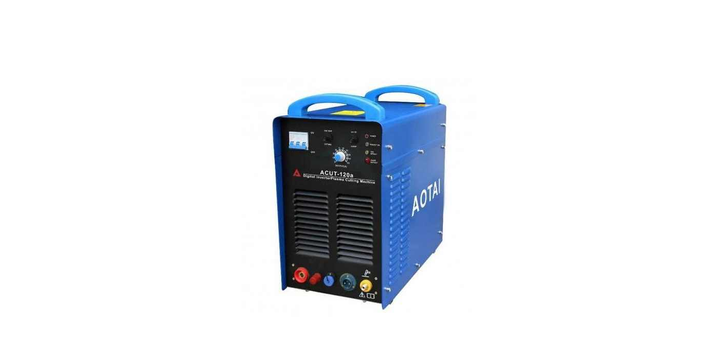

AOTAI Plasma Cutting Digital Inv 120A ACUT120A

Benefits

· Cutting current is continuesly adjustable

· Specialized for CNC cutting system

· Wide cutting range

· Small air flow needed

Features

· Non HF Arc Starting, without interference to CNC system

· 2 step / 4step operating mode provided

· With gas checking protection, that can perfectly protect the torch

· With Arc pressure Self-regulation function during cutting process

Specifications

· Rated Input Voltage (V) : 380V +/-10% 50/60

· Rated Input Capacity (KVA) : 16.5 KVA @Max Ampere

· Rated Input Current (A) : 39A

· Rated Output Voltage (V) : 120A/128V/60%

· Open-Load Voltage (V) : 345V @Max Ampere

· Range of Welding Current (A) : 30-120A

· Rated Duty Cycle (%) : 60% @40 Deg C

· Rated Duty Cycle (%) 60% @40 Deg C

· Air Flow : 21 L/min

· Max Cutting Thickness : 35 mm

· Protection Class : IP 21 S

· Insulation Class: H

· Weight (Kg) : 43.5Kg

· Dimension (LxWxH mm3) : 576x297x557mm

Technical Spec

• Netto Weight : 73.000 KG
• Unit Demension : 58X30X56CM
• Height Demension : 64.000
• Length Demension : 69.000
• Width Demension : 38.000
• Type : Plasma Cutting
• Dimension uom : 69.000
