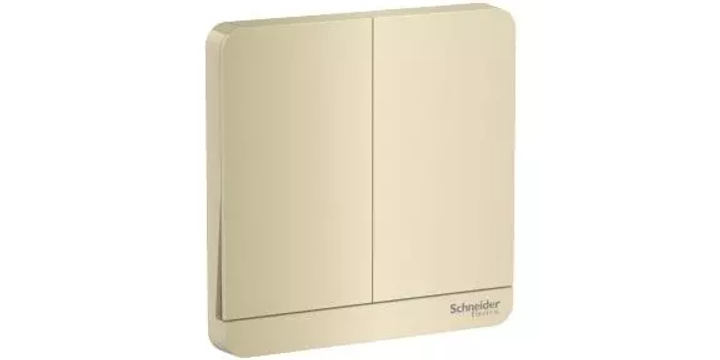

Schneider Electric E8332PRL1_WG_G3 Avataron, 2 Time Delay Switch, 4A, 250V, Wine Gold

Schneider Electric AvatarOn time delay switch E8332PRL1_WG_G3 is a complete product in color wine gold with 2 gangs and with 2 rockers.

Its matching mounting box can be recessed into the surface of the wall with flush type.

The fixing mode of this device is clip-in.

Being made of PC (polycarbonate), brass material, this time delay switch is quite reliable and resistant.

In addition, the rated operational voltage of this device is 250V.

It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm.

And the product weighs 0.089 kg.

Besides, the IP rating of this device is IP20.

The surface finish is glossy, delivering an elegant and high-end feeling to a room.

Spesifikasi

• Range AvatarOn
• Product/Component Type Saklar, Stop Kontak & Aksesoris
• [Ie] rated operational current Resistive: 4 A Inductive: 4 A
• [Ue] rated operational voltage 250 V AC 50...60 Hz
• Number of Gangs 2 gang
• Colour tint Wine Gold
• Device Mounting Flush
• Material
• PC _polycarbonate): base
• PC _polycarbonate): base cover
• PC _polycarbonate): grid plate
• PC _polycarbonate): surround
• PC _polycarbonate): dolly
• Brass: terminal cover
• Fixing Mode Clip-in
