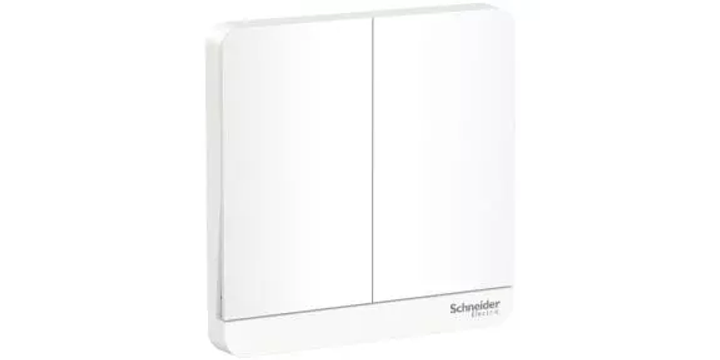

Schneider Electric E8332PRL1_WE_G3 Avataron, 2 Time Delay Switch, 4A, 250V, White

Schneider Electric AvatarOn time delay switch E8332PRL1_WE_G3 is a complete product in color white with 2 gangs and with 2 rockers.

Its matching mounting box can be recessed into the surface of the wall with flush type.

The fixing mode of this device is clip-in.

The time delay switch is made of PC (polycarbonate), brass, making it as resistant as possible.

250V is the rated operational voltage.

It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm.

And the product weighs 0.089 kg.

The IP rating of this device is IP20.

The surface finish is glossy, which ensures a bright, even an inviting finish.

Spesifikasi

• Range AvatarOn
• Product/Component Type Saklar, Stop Kontak & Aksesoris
• [Ie] rated operational current Resistive: 4 A Inductive: 4 A
• [Ue] rated operational voltage 250 V AC 50...60 Hz
• Number of Gangs 2 gang
• Device Mounting Flush
• Material
• PC _polycarbonate): base
• PC _polycarbonate): base cover
• PC _polycarbonate): grid plate
• PC _polycarbonate): surround
• PC _polycarbonate): dolly
• Brass: terminal cover
• Fixing Mode Clip-in
