Schneider Electric E8332PRL1_DG_G3 Avataron, 2 Time Delay Switch, 4A, 250V, Dark Grey

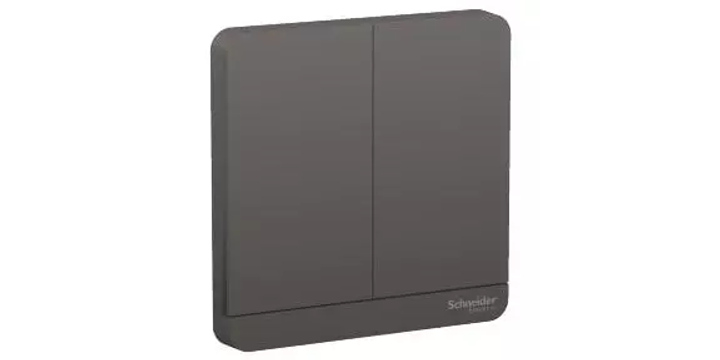

Schneider Electric AvatarOn time delay switch E8332PRL1_DG_G3 is a complete product in color dark grey with 2 gangs and with 2 rockers.

Its matching mounting box can be recessed into the surface of the wall with flush type.

The device's fixing mode is clip-in.

The time delay switch is made of PC (polycarbonate), brass, making it as resistant as possible.

In addition, the rated operational voltage of this device is 250V.

It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm.

And the product weighs 0.089 kg.

It reaches IP20 degree of protection too.

The surface finish is glossy, which ensures a bright, even an inviting finish.

This time delay switch is SVHC (substances of very high concern) free too.

Spesifikasi

• Range AvatarOn
• Product/Component Type Saklar, Stop Kontak & Aksesoris
• [Ie] rated operational current Resistive: 4 A Inductive: 4 A
• [Ue] rated operational voltage 250 V AC 50...60 Hz
• Number of Gangs 2 gang
• Device Mounting Flush
• Material
• PC _polycarbonate): base
• PC _polycarbonate): base cover
• PC _polycarbonate): grid plate
• PC _polycarbonate): surround
• PC _polycarbonate): dolly
• Brass: terminal cover
• Fixing Mode Clip-in
