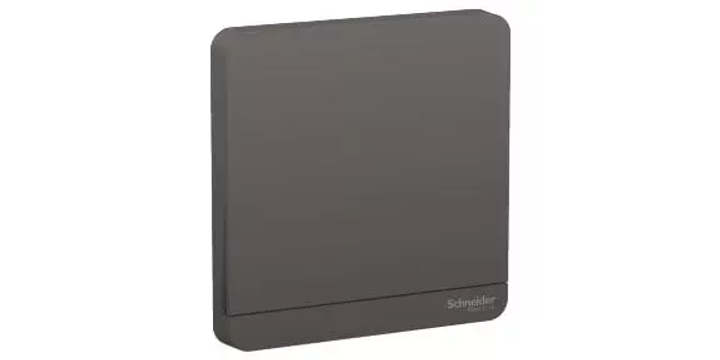

Schneider Electric E8331PRL1_DG_G3 Avataron, Time Delay Switch, 4A, Dark Grey

Schneider Electric AvatarOn time delay switch E8331PRL1_DG_G3 is a complete product in color dark grey with 1 gang and with 1 rocker.

Its matching mounting box can be recessed into the surface of the wall with flush type.

The device's fixing mode is clip-in.

Being made of PC (polycarbonate), brass material, this time delay switch is quite reliable and resistant.

In addition, the rated operational voltage of this device is 250V.

It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm.

And the product weighs 0.077 kg.

It reaches IP20 degree of protection too.

The surface finish is glossy, which ensures a bright, even an inviting finish.

This time delay switch is SVHC (substances of very high concern) free too.

Spesifikasi

• Range AvatarOn
• Product/Component Type Saklar, Stop Kontak & Aksesoris
• [Ie] rated operational current Resistive: 4 A Inductive: 4 A
• [Ue] rated operational voltage 250 V AC 50...60 Hz
• Number of Gangs 1 gang
• Device Mounting Flush
• Material PC _polycarbonate): base
• PC _polycarbonate): base cover
• PC _polycarbonate): grid plate
• PC _polycarbonate): surround
• PC _polycarbonate): dolly
• Brass: terminal cover
• Fixing Mode Clip-in
