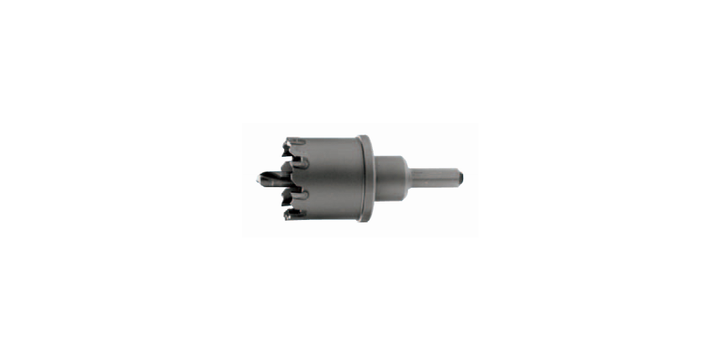

PFERD Tc Hole Cutter Los HM4035 40MM 063736\
TC HOLE CUTTER LOS HM4035 40MM 063736
Benefits
- High concentricity, as the cutting head and shank are produced in one piece
- Optimum cutting performance due to sharp teeth made of high-quality tungsten carbide
- Replaceable HSS pilot drill
Features
- The long type (tool height 35 mm) is suitable for use on curved surfaces and pipe materials.
- The maximum cut depth is 32 mm.
Specifications
- Shank dia.: 10 mm
- Dia.d: 40 mm
- Rec. Steel: 320-480 rpm
- Rec. Stainless Steel: 160-400 rpm
- Rec. Non ferrous met al: 350-530 rpm
- Rec. Plastic: 350-530 rpm
- Matching drill: LO SB 8/69
Technical Spec
- Netto Weight 0.100 KG
- Unit Dimension 3.5 X 4 X 3.5 CM
- Height Dimension 3.500
- Length Dimension 3.500
- Width Dimension 4.000
- Type Long
- Content Length 35 MM
- Dimension uom 3.500
