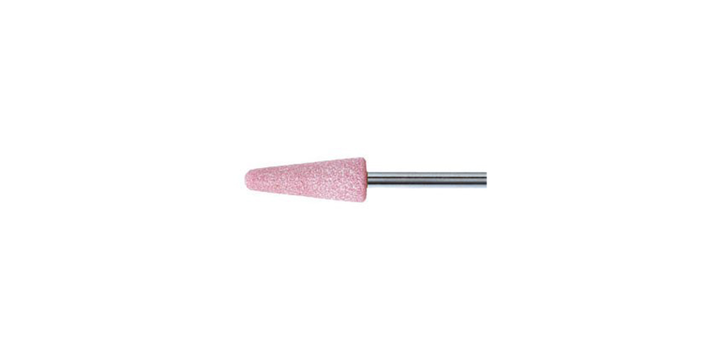

Pferd Mounted Point KE3250/8 AR24O5V 103098

Benefits

• These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
•  Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.

Features

• Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
• Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
• The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
• Application examples :
• Deburring of steel castings.
• Chamfering in preparation for welding.
• Contour a nd edge grinding on forgings.

Specifications

• Grit size : 24
• Shank diameter : 8 mm
• Shank length : 40 mm
• Burrs Diameter : 32 mm
• Burrs Thickness : 50 mm
• Max. Speed : 29.800 Rpm

Technical Specifications

• Netto Weight : 0.078 KG
• Unit Demension : 90 X 32 X 32 MM
• Height Demension : 32 CM
• Length Demension : 90 CM
• Width Demension : 32 CM
• Type : Tapered
• Dimension uom : 90 CM
