NILFISK Sweeper Ride on SR1601 D3

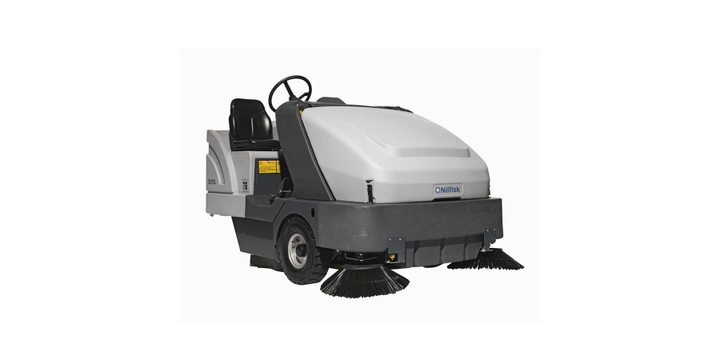

SWEEPER RIDE ON SR1601 D3

Benefits

SR1601 is claimed to be the most technically advanced sweeper in itscategory, with innovations that increase cleaning productivity whilstsimplifying operating and servicing requirements. Designed forindustrial applications such as heavily soiled factories, constructionsites, parking etc The dust control is outstanding, and airborneparticles are controlled more effectively thanks to the DustGuardTMsystem. And less dust means less cleaning elsewhere. The productivity is excellent, thanks to a huge 900 mm main broom, a 1600 mm wide sweepingpath, and the SR 1601s all around reliability for getting the job donequickly and well.

Features

• Excellent machine manoeuvrability thanks to the power steering(STD)
• Nilfisk DustGuard system completely controls airborne dust to reduce cleaning time
• Free floating main broom and fine tuning knob adjustment increases productivity and performance
• MaxAccess system provides fast and easy access to facilitate servicing
• The strongyet lightweight rotomoulded polyethylene covers and bumpers over a steel chassis provide automobile industry quality protection
• NoToolssystem speeds main broom and side broom changing cutting down on service time

Specifications

• Sound pressure level (dB(A)) : 88
• Motor power source : Diesel, 3cyl. 16,3 kW
• Motorbrand : Kubota
• Motor type : D1105
• Max speed (km/h) : 12
• Productivity 1 side broom theoretical/actual(m2/h) : 15000/10500
• Productivity 2 side brooms theoretical/actual(m2/h) : 19200/13440
• Working width w/right side broom (mm) :1250
• Working width w/2 side brooms (mm) : 1600
• Min.turn-around aisle width (cm) : 306
• Max climbing rate (%) : 25
• Fuel tank (l) : 35
• Fuel consumption (l/h) : 3.5
• Hopper volume(l) : 315
• Max dumping height (cm) : 159
• Max dumping weight(kg) : 363
• Main filter area (m2) : 10
• Main broom speed (RPM) : 540
• Main broom (mm) : 900x310
• Side broom diameter (mm) :550
• Length x width x height (cm) : 222x132x146
• Gross weight(gvw) (kg) : 1385
• Net weight (kg) : 965
• Operating weight (kg) : 1268
• Shipping weight (kg) : 1218

Technical Spec

• Netto Weight 965.000 KG
• Unit Dimension 222 X 132 X 146 CM
• Height Dimension 146.000
• Length Dimension 222.000
• Width Dimension 132.000
• Type Ride On Sweeper
• Dimension uom 222.000
