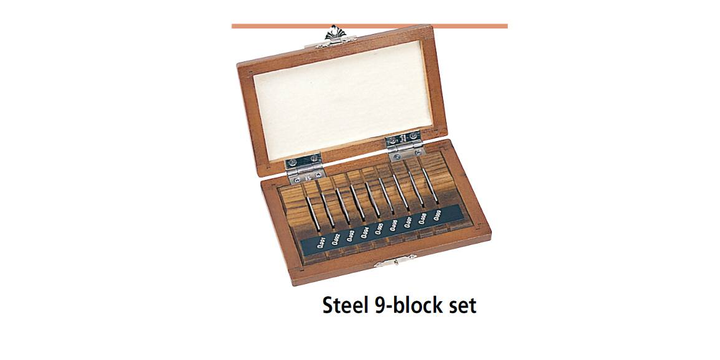

MITUTOYO Gauge Block Steel Set (9) 0 516-986-10

Benefits

• Precision ground and lapped to a specific thickness.

Features

· Advanced heat treatment technology for Mitutoyo steel blocks achieves excelent abrasion resistance and minimizes any change in length over time.

· Enable user to achive optimum flatness and surface finish needed for gauge block and thus maximize the wringing force.

Specifications

· Hardness: 800 HV

· Flexural strength by 3 point bending: 1960 Mpa

· Young’s Modulus x 10-4 : 20.6 MPa

· Poisson’s ratio: 0.3

· Specific gravity: 7.8

· Thermal conductivity: 54.4 W/m. k

· Content: 0.991-0.999 (0.001 step)

Technical Spec

• Netto Weight : 0.200 KG
• Unit Demension : 150 X 100 X 37 MM
• Height Demension : 3.200
• Length Demension : 15.300
• Width Demension : 10.200
• Material : Steel
• Type : Gauge Block Steel
• Dimension uom : 15.300
