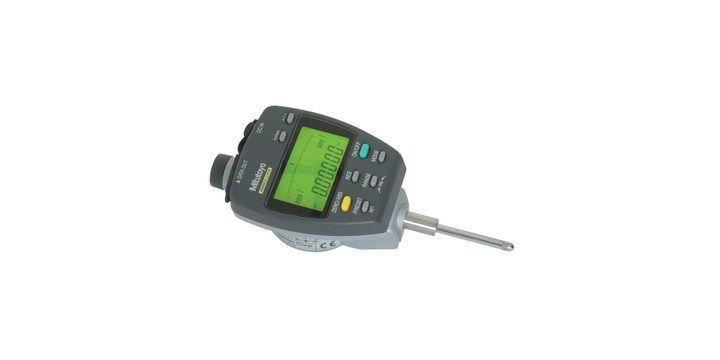

MITUTOYO Dig INDICATORBACKLIGHT1IN/.01MM 543-552E

DIG INDICATORBACKLIGHT1IN/.01MM 543-552E

Benefits

• GO/+/-NG judgment function: If a judgment result shows an outoftolerance condition, the display backlighting changes from greentored.
• An analog bar indicator has been integrated tomakeupper/lower limit and turnover poin t reading more comfortable.
• With Mitutoyo's ABSOLUTE Linear Encoder technology, once themeasurementreference point has been set it will not be lost when thepower isturned off.
• Also, reliability has been increased due to theeliminationof over-speed errors.
• Easy-to-read large LCD readoutwith thecharacter height of 8.5MM. External power supply type:batterychange is not necessary.
• Power can also be supplied via the ACadaptersupplied as a standard accessory.
• The resolution can beswitched
• Equip ped with a data output port that enablesincorporation intomeasurement ne tworking and statistical process control systems.

Features

• With the ABSOLUTE linear encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off.
• GO/+/-NG judgement is performed by setting upper and lower limits. if a judgemen t result shows an out of tolerance condition, the display backlighting changes from green to red, so tolerance judgement can be made at a glance.
• The maximum, minimum,or runout valu e can be displayed during measurement.
• An an alog bar indicator is integrated so that visualizing the fall of measure ments within limits is as easy as with a dial indicator.
• The display range ofthe analogbar can be set to suit the application.

Specifications

• Type: Multi Function
• Back Type: Flat Back
• Type: Plunger
• Range: 25 MM / 1 INC
• Resolution: 0.001 MM / 0.0002 INC
• Accurac y: +/-0.003 MM / 0.00012 INC
• Data Output: Y es
• Display: LCD character height 8.5 MM
• Contact Point: Carbide point No 4-48 UNF
• Stem diameter: 9.52 MM (3/8 INC)
• Max. response speed: Unlimited
• MeasuringForce: 1.8 N or less
• Scale type: Absolute electrostatic linear encoder
• Power Supply: 9V DC
• Functions Preset,Zeroset,GO/+/-NG judgeme nt, Max/Min value hold, Runout, Resolution switching,Counting direction switching, Power ON/OFF, Data output,INC/MM readout. Alarm: Counting v alue composition error, Overflow error, Tolerance limit setting error.

Technical Spec

• Netto Weight 0.240 KG
• Unit Dimension 350 X 155 X 75 MM
• Height Dimension 7.500
• Length Dimension 35.000
• Width Dimension 15.500
• Material Stainless Steel
• Type Multi Function Indicator
• Dimension uom 35.000
• Resolution 0.001 MM
