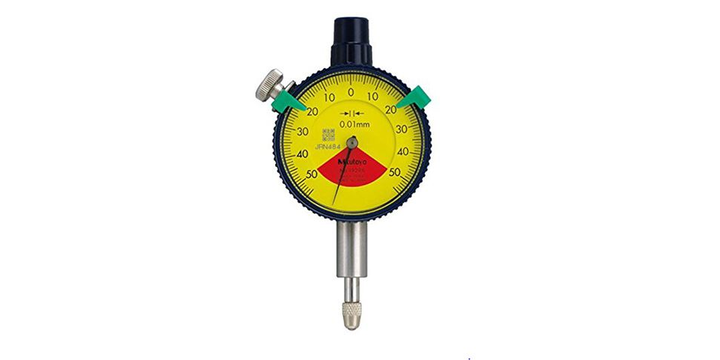

MITUTOYO Dial Indicator 1/0.01MM 1929A

 Benefits

• It is ideal for use in applications where space is limited
• It eliminates the possibility of reading errors due to miscounting multiple revolutions

Features

• This is a compact, metric dial indicator

Specifications

• Range: 1 mm (plunger stroke: 3,5mm)
• Range per rev.: 1.4 mm
• Graduation: 0.01 mm
• Scale: 50-0-50
• MPE any 1/10 revolution: 5 um
• MPE measuring range: 9 um
• H MPE (Hysteresis): 3 um
• R MPE (Repeatability): 3 um
• Measuring force: 0,4-1,4 N
• Balanced dial: Yes
• One revolution: Yes
• Shockproof: Yes
• Digital/Analog: Analog
• Inch-Metric: Metric
• Type: EN ISO Standard
• Stem: 8 mm
• Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
• Delivered: with certificate of inspection

Technical Spec

• Netto Weight: 0.123 KG
• Height Demension: 5.500
• Length Demension: 10.000
• Width Demension: 5.800
• Type: Dial
• Dimension uom: 10.000
