Mitutoyo Depth Gage 0-25MM 128-103
Deskripsi Produk

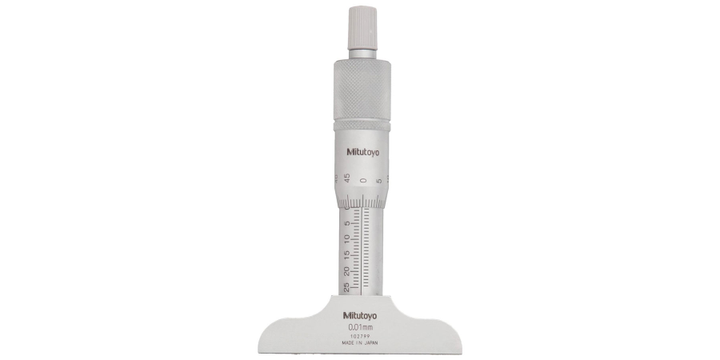

MITUTOYO Depth Gage 0-25MM 128-103
Depth Gage 0-25MM 128-103
Features
- Dia. 4 mm measuring spindle.
- Measuring spindle lock.
- Carbide tipped measuring spindle model is available.
- Ratchet stop provides constant force.
Specifications
- Range: 0-25mm
- Graduations: .001 inch
- Base Length: 63.5 x 16mm
- Accuracy: +/-3um for micrometer head feed
- Flatness of reference face: 1.3 microns for 63.5mm width base, 2 microns for 101 .6mm width base
- Flatness of measuring rod face: 0.3 microns
- Parallelism between reference face and measuring rod face: (4+L/50 ) microns, L=Max. measuring length (mm)
Technical Spec
- Netto Weight 0.200 KG
- Unit Dimension 198 X 104 X 35 MM
- Height Dimension 3.500
- Length Dimension 19.800
- Width Dimension 10.400
- Material Carbide
- Type Series 128
- Lead Time 130
- Dimension uom 19.800
Rp 2.568.000
(exc. PPN)
Rp 2.850.480
(inc. PPN)
Lead time diperlukan 90 hari kerja.
