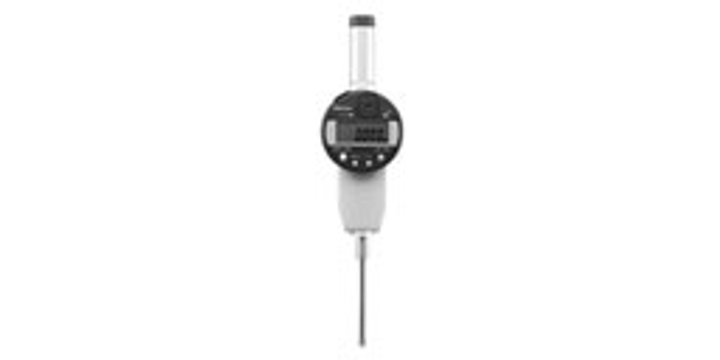

MITUTOYO Abs Dig Indicator 2INC/0.01MM 543-492B

Abs Dig Indicator 2INC/0.01MM 543-492B

Benefits

• Cost-effective oriented design ID-SX indicators use abutton-typebattery (SR44) and come with the minimum of functionality for ease ofuse.
• There is a choice of models in the lineup allowingselection of 0.01 MM, 0.001 MM o r INC-based measurement resolutions.
• IP53dust/water protection level The models listed below also provide IP53 dust/water protection level specifications: 543-794/94B/95/95B/96/96B
• ABS (absolute)sensorThese Digimatic indicators employ Mitutoyo’s propriet ary ABS(absolute)sensor, which makes it possible to restore the origin point even if the power is turned off.
• Thi s eliminates the need to performoriginrestoration each time the power is turned on.
• Further more, this sensor ensu res that over speed errors do not occur, which improves reliability. < li>Long battery life One button battery (SR44) prov ides approximately 20,000 hours of continuous use for.0005 in/0.01MM resolution models.

Features

• SPC Data capture compatible - requires F type Mitutoyo connector cable, (not supplied). For more information please see the data sheet below
• ABSOLUTE System scale for error free,high-speed measurement
• The ID-S indicates the absolute position of the spindle from the origin point at power-on, allowing measurement to sta rt immediately
• Zero-setting is performed with the ORIGIN button,and this setting does not have to be repeated durin g the entire life of the battery, even after power-off
• Measurement error due to spindle over speed is eliminated with the ABSOLUTE encoder
• An economical digital indicator with an extremely long battery life su ited to installation in measuring jigs where access may be restricted < li>An ABSOLUTE scale only needs to have the origin position set once,which then holds for all future measurements < li> Incremental measurement scan be made at any ti me without losing the origin setting
• Funct ions - Origin-set, (Zeroset), Counting direction switching,PowerON/OFF, Data output, INC/MM read out. Alarm: low voltage, Counting value comp osition error

Specifications

• Type: Standard
• Back Type: Flat Back
• SKU: 5055396122299
• Weight: 255 Gr
• Part Numb er: MIT-543-682
• Brand: Mitutoyo
• Type: Plunger
• Measure ment Units: Dual
• Display Type: Digital
• Range: 12.7 MM / 0.5 INC
• Resolution: 0.01 MM / .0005 INC
• Accu racy: +/-0.02 MM /+/-.0008 INC
• Battery: SR44, Display LCD character height - 8.5 MM
• Stem diameter: 8 MM

Technical Spec

• Netto Weight 0.260 KG
• Unit Dimension 348 X 75 X 153 MM
• Height Dimension 15.300
• Length Dimension 34.800
• Width Dimension 7.500
• Material Stainless Steel
• Type Digimatic Indicator
• Lead Time 130
• Dimension uom 34.800
• Resolution 0.01 MM
