Imada Dig Motorized Test STAND1000N EMX-1000N
Deskripsi Produk

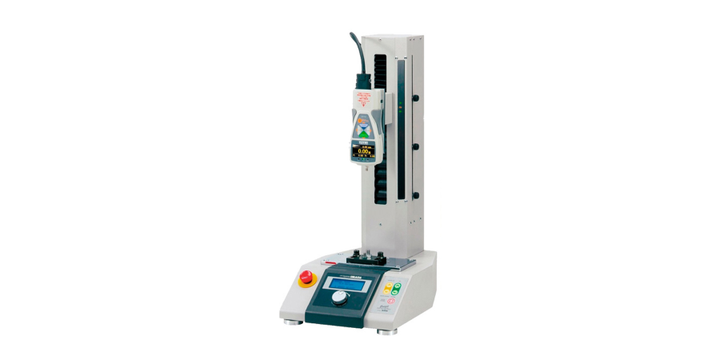

IMADA dig Motorized Test STAND1000N EMX-1000N
Features
- Highest spec and best quality among IMADA test stands.
- Addition to various functions of MX2 series, control by displacement is possible. (displacement output is an option).
- Significantly strong main shaft helps accurate and professional measurement even with easy operation.
- Various measurement conditions are settable with wide speed range and small resolutions of displacement.
- Jog/Manual/Cycle mode
- Speed, Timer, Counter settable on display
- Overload prevention
- Force Control
- Control by displacement
- I/O signal (optional cable is needed)
- Speed change at set position while measurement
- Power: AC100 to 240V
- Safety Guard: Upper/Lower stroke limit, Emergency Button, Front Shield
Specifications
- Capacity : 1000 Newton
- Stroke with gauge : 315mm
- Travel distance : 280mm
- Speed (mm/min) : 0.5-600
- Dimension WxDxH (mm) : Approx. 280x421x643
- Weight : Approx. 23.5kg
Technical Spec
- Netto Weight: 23.500 KG
- Unit Demension
- Height Demension: 70.000
- Length Demension: 35.000
- Width Demension: 45.000
- Type: Digital Motorized Test Stand Mx2-2500N
- Dimension uom: 35.000
Rp 158.575.000
(exc. PPN)
Rp 176.018.250
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
Kuantitas:
/ EA
