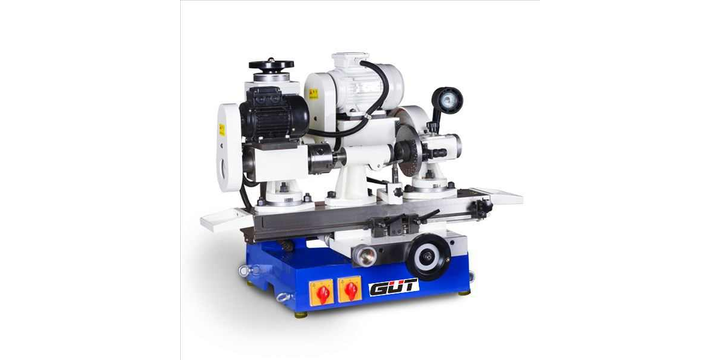

GUT Universal Tool Cutter Grinder TCR-6025

UNIVERSAL TOOL CUTTER GRINDER TCR-6025

 Benefits

• Multinational manufacturer leading machine tools in China
• Machine design with quality, reliability, User-friendly and safety
• Stable quality products for Industrial machine grade

Features

• Double electric motor
• Can grind inner and outer circles
• Used to grind (Keyway milling cutter, three-sides edge milling cutter, turning cutter, hobbing cutter, reamer, spiral milling cutter, ball endmill, cutter, drills and taps)

Specifications

• Max. Grinding diameter : Dia 250 mm
• Grinding wheel size : Dia 150 x 16 x 32 mm
• Grinding wheel speed : 5000 rpm
• Rotating angel of wheel head : 360 Deg
• Work table area : 130 x 650 mm
• Motor power:
• Motor 1 : 0.75 kW, 220/380 V
• Motor 2 : 0.25 kW, 220/380 V
• Evelating distance of wheel head 150 mm
• Longitudinal travel of the operating table : 150mm
• Horizontal travel of the operating table : 315 mm
• Taper of spindle Head : MT4
• Height of head holder : 135 mm
• The spesification are subject to modification and improvement without notice

Technical Spec

• Netto Weight 160.000 KG
• Height Dimension 71.000
• Length Dimension 70.700
• Width Dimension 75.000
• Type Grinding Machine
• Dimension uom 70.700
