Gut Surface Grinding Machine KGS-1632AH
Merek:
GUT
Model:
KGS-1632AH
Deskripsi Produk

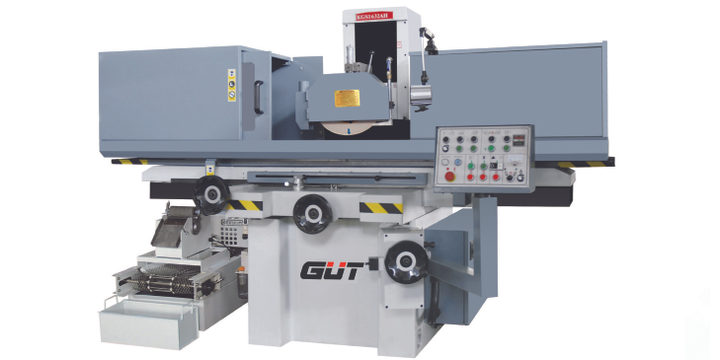

GUT Surface Grinding Machine KGS-1632AH

Benefits

  • Multinational manufacturer leading machine tools in China.
  • Machine design with quality, reliability, User-friendly and safety.
  • Stable quality products for Industrial machine grade

Features

  • Permanent magnetic chuck
  • coolant pump
  • Worklight
  • Wheel Flange and wheel
  • balancing stand with arbor table mounted dresser

Specifications

  • Working surface of table 400 x 800 mm
  • Max. Tabel travel 850 mm
  • Max. Cross travel 440 mm
  • Distance between table surface and spindle center 580 mm
  • Max table load 700 kg
  • Table speed 5-25 mm/min
  • Crossfeed handwheel 1 grad 0.02 mm
  • Crossfeed handwheel 1 rev 5 mm
  • Automatic crossfeed of saddle 0.5-12 mm
  • Grinding wheel dimension 355 x 40 x 127 mm
  • Spindle speed 1450 rpm
  • Vertical handwheel 1 grad 0.01 mm
  • Vertical handwheel 1 rev 2 mm
  • Spindle motor 5.5 kW
  • The spesification are subject to modification and improvement without notice

Technical Spec

  • Netto Weight: 2800.000 KG
  • Unit Demension: 252 X 200X 200 CM
  • Height Demension: 219.500
  • Length Demension: 272.000
  • Width Demension: 215.500
  • Type: SURFACE GRINDING
  • Dimension uom: 272.000
Rp 583.790.625
(exc. PPN)
Rp 648.007.594
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
