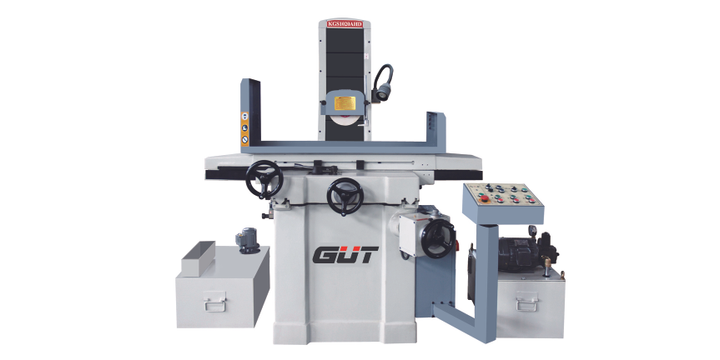

GUT Surface Grinding Machine KGS-1020AHD

Benefits

• Multinational manufacturer leading machine tools in China.
• Machine design with quality, reliability, User-friendly and safety.
• Stable quality products for Industrial machine grade

Features

• Permanent magnetic chuck
• coolant pump
• Worklight
• Wheel Flange and wheel
• balancing stand with arbor table mounted dresser

Specifications

• Working surface of table 255 x 510 mm
• Max. Tabel travel 560 mm
• Max. Cross travel 280 mm
• Distance between table surface and spindle center 520 mmm
• Max table load 300 kg
• Table speed 5-25 mm/min
• Crossfeed handwheel 1 grad 0.02 mm
• Crossfeed handwheel 1 rev 5 mm
• Automatic crossfeed of saddle 0.5-12 mm
• Grinding wheel dimension 200 x 25 x 32 mm
• Spindle speed 2850 rpm
• Vertical handwheel 1 grad 0.01 mm
• Vertical handwheel 1 rev 2 mm
• Automatic downfeed rate 0.002-0.2
• Spindle motor 2.2 kW
• The spesification are subject to modification and improvement without notice

Technical Specifications

• Netto : 1680 KG
• Height : 234 CM
• Length : 216 CM
• Width : 176 CM
• Type : SURFACE GRINDING
