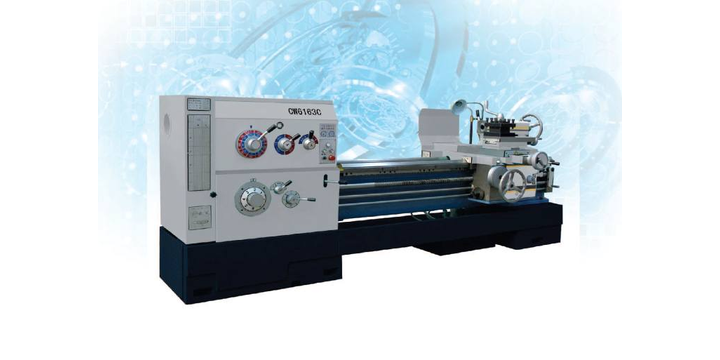

GUT Gap Bed Lathe CW6283C X 3000

Benefits

• Multinational manufacturer leading machine tools in China.
• Machine design with quality, reliability, User-friendly and safety.
• Stable quality products for Industrial machine grade

Features

• Hypercoustic quenched and accurate grinded bedway and dovetail of saddle
• One piece cast iron base for well rigidity
• Hypercoustic quenched and accurate grinded main drive gear
• Forced lubrication of headstock by oil pump
• Clutch assembled in apron for avoiding overload
• automatic feed
• Convenient to cut thread
• Three jaw chuck
• Four jaw chuck
• Four station tool post
• Coolant system
• Worklamp
• Full length splash guard
• Face plate
• Steady rest
• Follow rest
• Reduce sleeve
• Dead centers

Specifications

• Swing over bed : 830 mm
• Swing over cross slide : 550 mm
• Width of bed : 550 mm
• Distance between center : 3000 mm
• Cutting tool max section : 30 x 30 mm
• Diameter of spindle bore : 105 mm
• Range of spindle speeds : 10 - 800 rpm
• Metric pitch threads : 1 - 240 mm
• Thread imperial pitches : 2 - 30 TPI
• Travel of tailstock quill : 260
• Taper hole of tailstock quill : MT#5
• Main motor power : 11 kW
• The spesification are subject to modification and improvement without notice

Technical Spec

• Netto Weight: 4910.000 KG
• Unit Demension: 498X125X145.5CM
• Height Demension: 165.500
• Length Demension: 518.000
• Width Demension: 145.000
• Type: MANUAL LATHE
• Dimension uom: 518.000
