Gravograph Engraving Mch Std Pack M40

Engraving Mch Std Pack M40

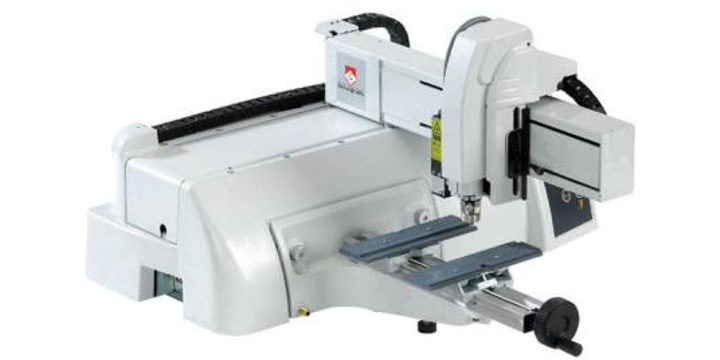

The M40 is a compact, versatile, custom engraving machine. Its large engraving area makes it a perfect engraving solution for medium-sized and flat objects. It can engrave a variety of materials such as stone engraving, gift engraving, and many more!!

• OPEN STRUCTURE
  Don’t let your machine decide what you can or can't engrave. The M40 rotary engraver is 8.26x12in engraving area benefits from an open structure that allows larger items to be engraved when needed. Create custom engraving on very long plastic signage plates, electrical labels, thin wood beams, golf clubs, swords, irregular-shape items, and simply use as a sign engraver.

• GIFT ENGRAVING WITH THE M40 GIFT
  The M40 Gift includes an automatic lubricant tank and a rotary device to personalize glasses and bottles. The rotary device can be tilted for conical items. Engrave and personalize any flat or cylindrical items up to 4.33in height.

• BEGINNERS ROTARY ENGRAVER
  Control and adjust your work with our dedicated Gravostyle™ or ABC engraving software, thanks to several options. The M40 comes with an auto-centering jig and a laser beam (Point & Shoot) to help you place the item to engrave, while the engraving software automatically picks up its position. The included Gravogrip™ table firmly holds the item without leftover residue on it.

Technical Specifications

Automatic Z-axis
No need to manually measure your items.

Point & shoot
Easily place your item and start engraving.

Optional Bluetooth
Wireless communication between your software and the machine.

4.36mm spindle diameter
More stable spindle for higher precision.
Compatible with Twincut.

20,000 tr/min speed
Clean and smooth engraving finish.

Deep Vice
To engrave larger items.

Max. object size (L x W x H) (weight)
Unlimited x 210 (8,27 in) mm (10 kg - 22,04 lbs)

Dimensions (L x W x H)
550 mm x 510 mm x 390 mm (21.7 in x 20.1 in x 15.4 in)

Machine weight
19 kg (41.888 lb)

Automatic Z axis
Yes

Noise level
<70 dB

Spindle Type
Top load spindle
Hollow shaft motor

Point & shoot
Yes

Operating Temperature
min. +5°C (+ 41°F) - max. +40°C (+104 °F)

Connection to computer
USB / Bluetooth (option)

Maximum speed
25 mm/s (0,98 in/s)

Z stroke (Z travel)
40 mm (1,575 in)

Rotation speed
20 000 rpm

Software
ABC / Gravostyle / Gravotouch

Tool diameter
4,36mm (0,17 in)
