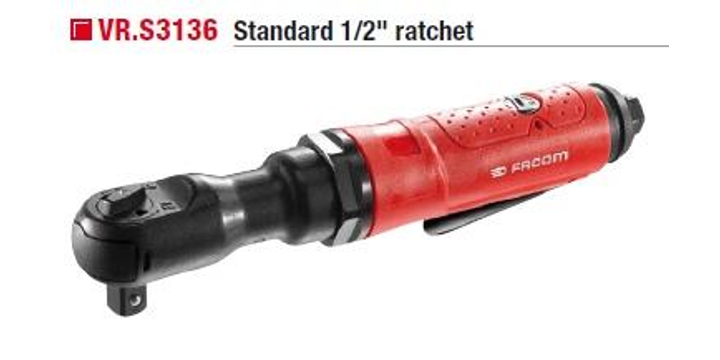

Facom Standard 1/2 Inch Ratchet VR.S3136

Standard 1/2 Inch Ratchet VR.S3136

Benefits

• Durable ratchet head mechanism with closed head design: prevents dust and particles to damage the head.
• Easily accessible forward reverse switch, even usabl e with greasy hands.
• Accessible nipple for convenient greasing of the head and gears.

Features

• Insulating rubber sleeve covering a lightweight aluminium housing.
• Speed easily regulated with a screwdriver.
• Rear exhaust drives the air away from the workplace.
• Feather teasing trigger for optimal speed regulation.
• Socket ball retainer for safety.

Specifications

• 51 mm slim profile head.
• Available with a 3/8 INC square drive: VR.J3108.
• Available with a 1/2 INC square drive: VR.S3136.
• Maximum torque 136 N.m.
• Maximum torque 100 ft.lbs.
• Free speed 280 tr/min.
• Square drive 1/4 INC.
• Working pressure 6,2 bar.
• Average air consumption 113 l/min .
• Air inlet 1/4 INC.
• Minimum hose diameter 10 mm - 3/8 INC.
• Vib ration 910 m/s2/a.
• Vibration 140 m/s2/K.
• Sound pressure 99 dB(A)
• Sound power 110 dB(A).

Technical Spec

• Netto Weight 1.200 KG
• Unit Dimension 26.1 X 4.2 X 4.2 CM
• Height Dimension 4.200
• Length Dimension 26.100
• Width Dimension 4.200
• Type Standard
• Lead Time 60
• Dimension uom 26.100
