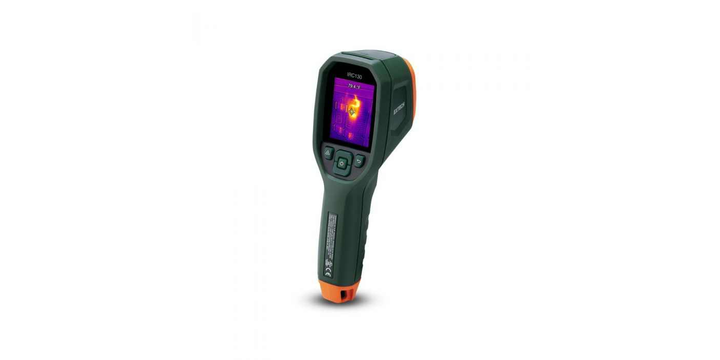

Extech Thermal Camera W/MSX IRC130

Extech Thermal Camera W/MSX IRC130

Merek:	Extech
Model:	W/MSX IRC130

Deskripsi Produk

Benefits

Two-camera technology: 80 x 60 true thermal imager, visual camera, plus coaxial laser

Features

Large 2.4 inch TFT color display (320 x 240 pixels) with intuitive easy-to-navigate menu in 22 languages
Designed with integrated true thermal imager (80 x 60 pixels) to detect what the eyes cant see
Patented MSX technology adds visible-light details to thermal images in real time for greater clarity without diluting the image or decreasing thermal transparency
Measure temperature up to 1202 Deg F (650 Deg C)
High accuracy with adjustable emissivity
Unique coaxial laser allows for locating hot or cold spots that may indicate potential issues 30:1 distance-to-spot (target) ratio
Capture and store up to 50,000 MSX thermal and visual images in JPG format
USB interface for transferring images
Fast 150 ms response time for real-time temperature updates with continuous scanning
Bright LED flashlight
Standard UNC 1/4 inch-20 accessory mount
Rugged design with dust and water protection (IP54 rating) and 2-meter drop tested
Adjustable Auto Power Off (APO) timer
Low battery indicator
Complete with integrated 3.6 V rechargeable lithium ion battery, USB cable, lanyard, and pouch with convenient belt loop and shoulder strap

Specifications

Specifications Range
Temperature range -13 to 1202 Deg F (-25 to 650 Deg C)
Basic accuracy +/- 1% of reading or +/-1 Deg C (2 Deg F), whichever is greater
Image storage capacity 50,000 JPEG images (with spot temperature metadata tag)
Emissivity 0.10 to 0.99 (adjustable) and 3 presets
Response time 150 ms
IR Resolution 80 x 60 (4800 pixels)
Digital Camera Resolution 2 MP (megapixels)
Thermal Sensitivity /NETD < 70 mK
Field of View (FOV) 51 Deg x 66 (H x W) Deg
Minimum focus distance 0.3 m (0.89 ft.)
Distance to Target 30:1
Dual range operation Range 1: < 752 Deg F (400 Deg C); Range 2: > 752 Deg F (400 Deg C) - For Range 2, the high temperature lever must be engaged
Focus Fixed
Image frequency 8.7 Hz
Focal plane array/Spectral response range Uncooled microbolometer/7.5 - 14 um
Display resolution 320 x 240 pixels
Screen size 2.4 inch (61 mm) - portrait
Viewing angle 80 Deg
Display type TFT technology
Image modes Visual and Visual/Thermal MSX (Multi-Spectral Dynamic) images
Color display palettes Iron, Rainbow, White-hot, Black-hot, Arctic, and Lava
Image gallery Yes
IP rating IP54 (IEC 60529)
Drop tested -6.5 ft (2 m)
Accessory mount UNC 1/4 inch-20
Power Internal rechargeable battery (3.6 V Lithium Ion)

Rp 15.234.000

(exc. PPN)

Rp 16.909.740

(inc. PPN)

Lead time diperlukan 30 hari kerja.
