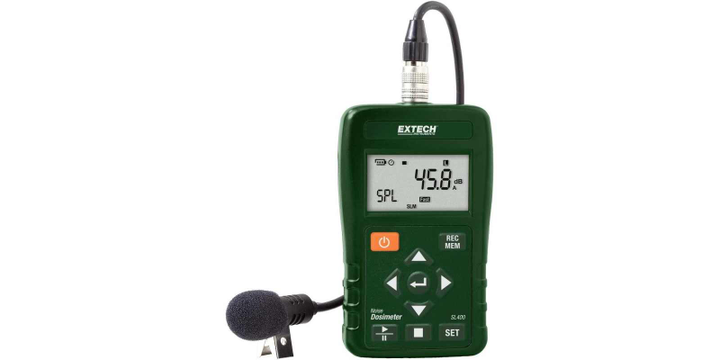

Extech Noise Dosimeter Datalog Personal SL400

Benefits

• For employees that are exposed to loud noise, sound level monitoring is essential to determine what protective measures are required.
• Perform OSHA and IEC Noise accumulation surveys to determine total sound exposure over an 8 hour period.
• The SL400 is a compact, lightweight Dosimeter with USB interface designed to test noise exposure and provide noise surveys for compliance with OSHA, MSHA, DOD, ACGIH, and ISO standards.
• Includes PC software to control setup and retrieve stored events or analyze real-time measurements.

Features

• Measures frequency weighted noise exposure and peak (C, Z) sound level
• Datalogs up to 999.999 readings when used as a sound level meter with sampling times between 1 second and 24 hours
• Sound level mode: displays sound level, min/max, time-averaged sound level (Leq), peak, and sound exposure level (SEL)
• Adjustable Criterion Level, Exchange Rate and Threshold
• One user defined measurement setup
• Optional 94dB calibrator to perform before and after calibration checks per ANSI standards
• USB interface with Windows compatible software to control setup and retrieve stored events or analyze real time measurements
• Complete with belt clip, clip on 0.5 inch (12.7mm) microphone with 32 inch (81.3cm) cable and windscreen, 9V battery, software, USB cable, and carrying case

Specifications

• Standards IEC61252-1993, IEC67672-1-2003, ANSI S1.25-1992, ANSI S1.4-1983, ANSI S1.43-1997
• Ranges (Accuracy) 30 to 90 dB, 50 to 110dB; C, Z Peak: 70 to 140dB / C and Z
• Peak: 90 to 143dB (Accuracy: +-1.4dB@94dB 1kHz)
• Frequency Weighting A, C, Z
• Response Rate Fast, Slow, Impulse
• Bandwidth 20Hz to 8kHz
• Memory Dose: 10.000 points/SLM: 999.999 points
• Criterion Level / Threshold Level 30 to 140dB in 0.1dB steps / 30 to 140dB in 0.1dB steps
• Exchange Rate 3, 4, 5 or 6 dB
• Measurement Duration 5, 10, 15, or 30 minutes, 1, 2, 4, 8, 10, 12, or 24 hours
• Measurement Modes %Dose, Lxmax, Lxyp, Lxmin, Lxeq, SEL (LAE), PeakMAX, LAVG, TWA, LEP, LN% SPL, Lxmax, Lxyp, Lxmin, Lxeq, SEL (LAE) PeakMAX
• Dimensions/Weight 4.2 x 2.6 x 1.3 inch (107 x 65 x 33mm) - exclude connector on top/ 7oz. (198g) include batteries and microphone cable

Technical Specifications

• Netto Weight : 1 KG
• Height Demension : 8 CM
• Length Demension : 16 CM
• Width Demension : 11 CM
• Type : NOISE DOSIMETER
• Dimension uom : 16 CM
