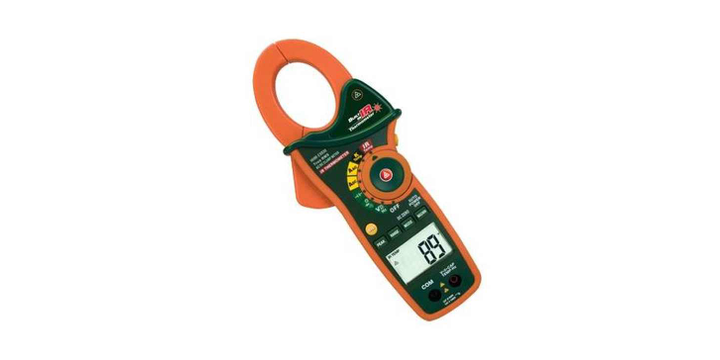

Extech Clamp Meter Trms AC/DC 1000A EX830-NISTL

 CLAMP METER TRMS AC/DC 1000A EX830-NISTL

Benefits

• Ideal for industrial applications the 800 series Full size 1000A clamps feature a built-in Infrared thermometer and rugged double molded housing.

Features

• Non-contact InfraRed Temperature measurements with a laser pointer
• Models with True RMS Current and Voltage measurements
• Peak hold captures inrush currents and Transients
• MultiMeter functions include AC/DC Voltage, Resistance, Capacitance, Frequency, Type K Temperature (EX820/EX830), Diode, and Continuity
• 1.7 inch (43mm) jaw opening for conductors up to750MCM or two 500MCM
• 4000 count backlit display
• Features include Data Hold and Min/Max
• Autoranging with manual range button
• Auto Power off
• Complete with test leads, 9V battery, general purpose Type K probe (EX820/EX830), and cas

Specifications

• IR Temperature (IR) : -50 to 270deg.C, -58 to 518deg.F
• AC Current : 0.1 to 1000A
• DC Current : 0.1 to 1000A
• AC Voltage : 0.1mV to 600V
• DC Voltage : 0. 1mV to 600V
• Resistance : 0.1 to 40M
• Capacitance : 0.001nF to 40000nF
• Frequency : 0.001kHz to 4kHz
• Type K Temperature : -4 to 1400deg.F -20 to 760deg.C
• Continuity : Yes
• Inrush : Yes
• Diode : Yes

Technical Spec

• Netto Weight: 0.386 KG
• Unit Dimension: 37 X 21 X 15 CM
• Height Dimension: 15.000
• Length Dimension: 37.000
• Width Dimension: 21.000
• Type: Clamp Meters
• Lead Time: 60
• Dimension uom: 37.000
