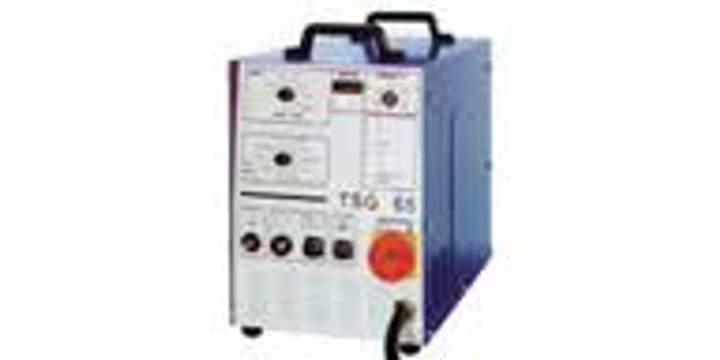

EMHART Stud Weld Set W/ Collet 150503 PW65T(M5)

 Benefits

• Microprosessor controlled, compact, transformer rectifying typewelder;
• Designed from operator's viewpoint. Control and set-upprocedures are very simple
• Welding parameters are preset bas ed onthickness of metal and stud diameter

Features

• Drawn arc system;
• The operator can be very easy to performdro p down time.
• Display to know error occure
• Fine adjustment bypotentiometer is possible for fine adjustment.
• The welding gun issmall and lightweight but robust. Maintenace very simple

Specifications

• Welding method : Drawn arc system;
• Welding power source : 3phase transformer;
• Mains Voltage : 240V, 380V, 400V, 440V,480V;
• Fluctuation : +/- 10%;
• Mains Frequency : 50Hz /60Hz;
• Max connection rating : 65kVA;
• Peak Output Ratin g :36KW;
• Welding Time Range : 6 ms - 120 ms ;
• Welding cu rrent :650A;
• Welds per minute : Stud diameter 5mm, max 20 pcs;
• Can be used for T- Stud & Std Stud from M3 until M8;
• Dimensi on (LxWxH) :490mm x 300mm x 470mm;
• Weight : 60 kg
• Used type : Manual

Technical Spec

• Netto Weight: 60.000 KG
• Unit Demension: 490 X 300 X 470 MM
• Height Demension: 470.000
• Length Demension: 490.000
• Width Demension: 300.000
• Type: Stud Welding Machine
• Dimension uom: 490.000
