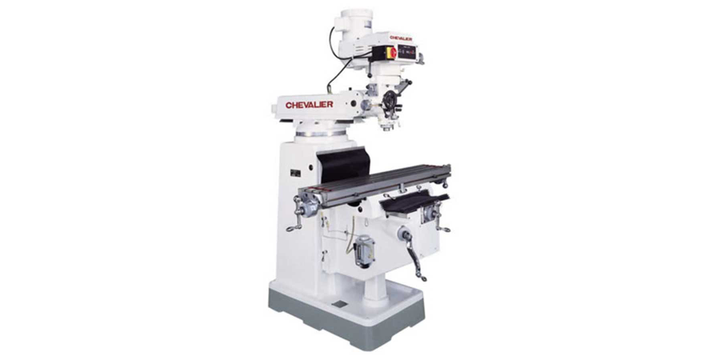

Chevalier Vertical Turret Milling Machine FM-2SKH
Chevalier Vertical Turret Milling Machine FM-2SKH
Merek:
CHEVALIER
Model:
FM-2SKH
Deskripsi Produk

CHEVALIER Vertical Turret Milling Machine FM-2SKH

VERTICAL TURRET MILLING MACHINE FM-2SKH

Benefits

  • Chevalier is one of the leading machine tools manufacturers in Taiwan
  • Machine design with quality, reliability, User-friendly and safety
  • Stable quality products for Industrial grade machining center

Features

  • Dynamically Balanced Motor and Ground Pulleys.
  • Chrome-Plated and Bearing Supported Motor Shaft Provides An Extremely Smooth, Low Vibration Quiet Drive.
  • High Precision Spindles Use Angular Contact Bearings.
  • The Dovetail and Square Slideways of The Table, Saddle and Column Are Laminated with Turcite-B.
  • The hard chrome quill is ground to mirror finish to ensure smooth movement.
  • Double-nut Mounting of table and saddle lead screws eliminates backlash.
  • One-piece Pinion Gear and Shaft; one-piece worm gear & shaft.
  • One shoot lubrication system
  • X and Y axis power feeder
  • Arbor and collet set

Specifications

  • Table Size : 254 x 1270 mm Longitudinal Travel : 760 mm Cross Travel : 390 mm Vertical Travel (knee) : 380 mm Table T-slots : 3 / 16 Maximum Load : 430 kg Vertical Spindle Motor : 2 HP Spindle Speeds : 60 ~ 2280 (8steps) Spindle Taper : #30 NST Sp indle Noseto Table : 40 ~ 420 mm Spindle Center to Column Surf ace : 102 ~652 mm Spindle Quill Travel : 127 mm Auto matic VerticalFeeds : 0.04, 0.08, 0.14 mm /rev Overarm Tr avel : 550 mm Overarm Swivel degree : 360°
  • Tidak termasuk biaya kirim dan instalasi

Technical Spec

  • Netto Weight 1520.000 KG
  • Unit Dimension 257.2X200X205CM
  • Height Dimension 225.000
  • Length Dimension 277.200
  • Width Dimension 220.000
  • Type Vertical Milling Machine
  • Dimension uom 277.200

Rp 385.504.000
(exc. PPN)
Rp 427.909.440
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
