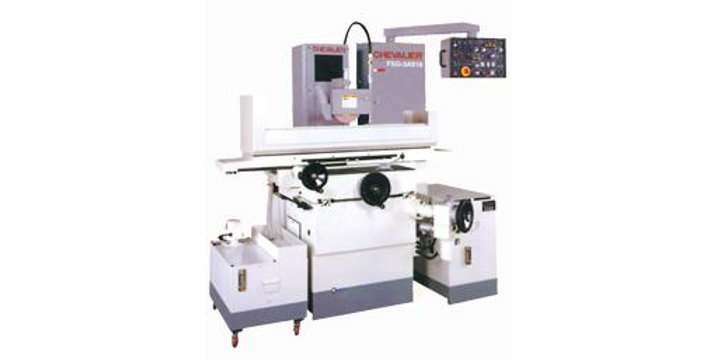

CHEVALIER Precision Surface Grinder FSG-3A818
Precision Surface Grinder FSG-3A818
Benefits
- Chevalier is one of the leading machine tools manufacturers in Taiwan.
- Machine design with quality, reliability, User-friendly and safety.
- Stable quality products for Industrial grade machining.
Features
- Table traverses on linear ball bearings hardened and ground guideways.
- Reinforced ribbed column with hardened and ground guideway system.
- Elevating and crossfeed leadscrews are hardened and ground.
- Automatic lubrication system.
- Main Structur made og high quality cast iron.
Specifications
- Table Size : 203 x 457 mm
- Max. Grinding Length Longitudinal : 457 mm
- Max. Grinding Width Crosswise : 203 mm
- Max. Distance from table : 450 mm
- Standard Magnetic Chuck Size : 200x450 mm
- Longitudinal Movement of table Travel, Hydraulic : 500 mm
- Longitudinal Movement of table Max.travel, Manual : 530 mm
- Cross Movement of Table Max. Automatic Travel : 230 mm
- Cross Movement of Table Max. Manual Travel : 240 mm
- Grinding Spindle Drive Speed : 60 Hz / 3450 rpm, 50 Hz / 2850 rpm
- Grinding Spindle Drive Power Rating : 1.5 kW
- Wheel dimension OD x Width x Bore : Dia 203 x 12.7 x Dia 31.75 mm
- Floor Space (LxWxH) : 2180 x 1349 x 1900 mm
- Net Weight : 1320 kg
- Rated Power (Approx.) : 3.7 kW
- The spesification are subject to modification and improvement without notice
Technical Spec
- Netto Weight 1320.000 KG
- Unit Dimension 218 X 134.9 X 190 CM
- Height Dimension 221.000
- Length Dimension 185.400
- Width Dimension 154.900
- Type SURFACE GRINDING
- Dimension uom 185.400
