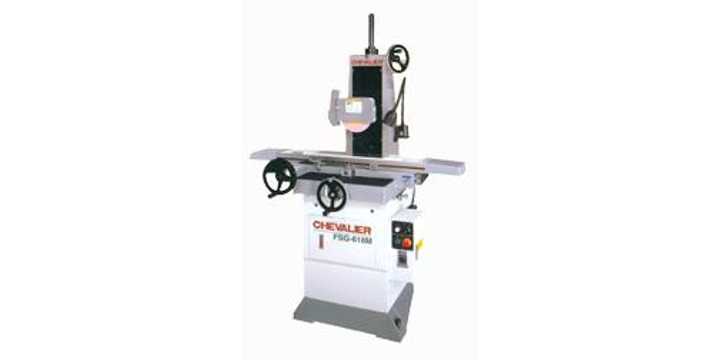

CHEVALIER Precision Surface Grinder FSG-2A618

 Benefits

• Chevalier is one of the leading machine tools manufacturers in Taiwan.
• Machine design with quality, reliability, User-friendly and safety.
• Stable quality products for Industrial grade machining.

Features

• Table traverses on linear ball bearings hardened and ground guideways.
• Reinforced ribbed column with hardened and ground guideway system.
• Elevating and crossfeed leadscrews are hardened and ground.
• Automatic lubrication system.
• Main Structur made og high quality cast iron.

Specifications

• Table Size : 146 x 460 mm
• Max. Grinding Length Longitudinal : 457 mm
• Max. Grinding Width Crosswise : 152 mm
• Max. Distance from table : 450 mm Standard Magnetic Chuck Size : 150 x 450 mm
• Longitudinal Movement of table Travel, Hydraulic : 500 mm
• Longitudinal Movement of table Max.travel, Manual : 510 mm
• Cross Movement of Table Max. Automatic Travel : 171 mm
• Cross Movement of Table Max. Manual Travel : 180 mm
• Grinding Spindle Drive Speed : 60 Hz / 3450 rpm, 50 Hz / 2850 rpm
• Grinding Spindle Drive Power Rating : 1.5 kW
• Wheel dimension OD x Width x Bore : Dia 203 x 12.7 x Dia 31.75 mm
• Floor Space (LxWxH) : 1900 x 1600 x 2130 mm
• Net Weight : 790 kg
• Rated Power (Approx.) : 2.5 kW
• The spesification are subject to modification and improvement without notice
