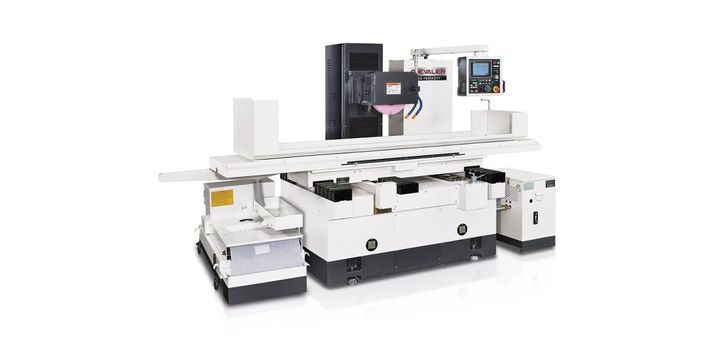

CHEVALIER Precision Surface Grinder FSG-1640ADIV
Precision Surface Grinder FSG-1640ADIV
Benefits
- Chevalier is one of the leading machine tools manufacturers in Taiwan.
- Machine design with quality, reliability, User-friendly and safety.
- Stable quality products for Industrial grade machining.
Features
- Constant surface speed adjusts as the grinding wheels diameter changes for increased accuracy.
- A higher level of precision, flexibility and functionality with in-machine dynamic balancing.
- The controls variable frequency drive system automatically adjusts the grinding wheel’s line speed.
- The wheel dressing mode ensures the grinding wheel remains true for consistent grinding accuracy.
- The FSG-ADIV Series has built-in long-term value in process-based applications.
- 3-axis linear roller guideways enhance rigidity andstability for cross-feed and longitudinal travel.
Specifications
- Max. grinding length-longitudinal : 1015 mm
- Max.grinding width-crosswise : 405 mm
- Distance between table to spindle centerline : 610 mm
- Height from the machine table to ground : 980 mm
- Max. table load : 440 kg
- Table size : 400 x 1000 mm
- Max. table travel : 1050 mm
- Transverse movement (Z) Max. travel : 420 mm
- Wheelhead elevation (Y) Max. travel : 480 mm
- Spindle speed : 1800 Rpm
- Spindle motor : 3.7 kW
- Wheel dimension OD x Width x Bore : Dia 355 x 50 x Dia 127 mm Floor space (W x D x H) : 4280 x 2080 x 2100 mm
- Net weight : 3500 kg
- The spesification are subject to modification and improvement without notice
Technical Spec
- Netto Weight 3500.000 KG
- Unit Dimension -
- Height Dimension 230.000
- Length Dimension 448.000
- Width Dimension 190.300
- Type SURFACE GRINDING
- Dimension uom 448.000
