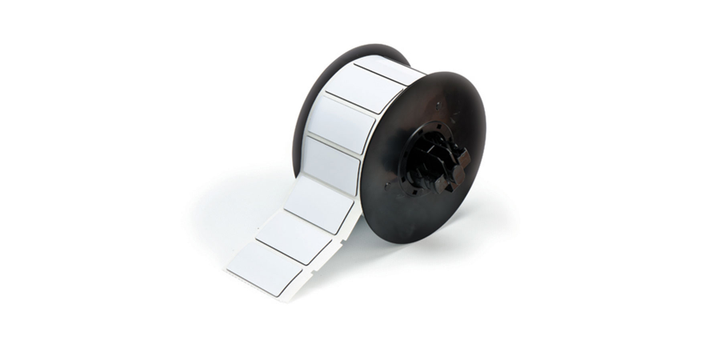

BRADY Vinyl BBP31 Raised Prof B30EP-173-593-WT

Vinyl BBP31 Raised Prof B30EP-173-593-WT

Features

Repositionable vinyl cloth material for wire, cable, and component marking. Adhesive and cloth backing offers excellent holding power, while easily being repositioned and removed.

Specifications

• Application(s): Barcoding, Bottles, Component ID, Conical Tube, Deep Well Plate, Equipment ID, General Purpose ID, Petri Dish, Through Hole - Top, Wire & Cable Marking
• Agency Approval(s)/Compliance: U L Recognized
• Size: 1.000INCW x 1.500INCH (25.400 mm W x 38.100 mm H)
• Printable Area: 1.000INCW x 1.500INCH (25.400 mm W x 38.100 mm H)
• Max Characters Per Line For Font #2: 24
• Max Lines of Text For Font #2: 16
• Label Type/Style: Label
• Color: White
• Wire Gauge: 10 to 4
• Finish: Semi-Gloss
• Qty Per Row : 1
• Material Type: Vinyl Cloth
• Material Description: Repositionable Vinyl Cloth
• Brady Material #: B-498
• Recommended Ribbon Series: R6210
• Suggested Ribbon Part#: R6210
• Acceptable Ribbon Series: R4310
• After Process: Yes, this material will work with this application
• Environment: Freezer
• Printer Compatibility: BMP71, TLS 2200, TLS-PC Link
• Surface: Smooth, Textured/Rough
• Surface Mount Technology: No, this material does not work with this application
• Through Hole Technology: Top: Yes. In extreme high temperatures, testing of this mate rial is recommended, Bottom: No
• Special Properties: Repositionable
• RoHS Compatibility: Pass 2011/65/EU
• QTY/UOM: 250/Roll

Technical Spec

• Netto Weight 1.500 KG
• Unit Dimension 5 X 3.81 X 3.81 CM
• Height Dimension 3.810
• Length Dimension 5.000
• Width Dimension 3.810
• Material Vinyl
• Color White
• Type Label Maker Cable and Wire
• Content Length 250 /Roll
• Temperature Ranger -40 to 175 Deg. F
• Lead Time 75
• Dimension uom 5.000
