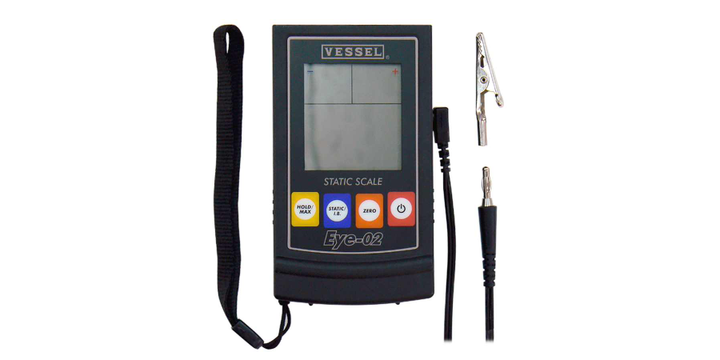

Vessel Static Scale EYE-02 621603

Benefits

• A hand-held measuring instrument enabling you to measure an invisible electrostatic charge condition or ion balance of the ionizer easily.
• Maximum value(peak value)/pause can be displayed.
• LED cross mark as an index for correct measurement distance.
• Equipped with a female thread for camera screws; using with a tripod or jig enables measurements in stable state. Also provided with a plate for ion balance measurements.
• LCD has backlight and provides a bright, easy-to-see display in low light.
• Provided with a soft housing carrying case.
• Compatible with ISO 9000 traceability. A calibration table and certificate can be issued.

Features

• Ion balance : 0 to +/-200V
• Static charge voltage measuring : +/-0 to+/-1.50 KV(LO range), +/-1.0 to+/-22.0 KV(HI range)
• Measuring distance : 25? +/-0.5? (Between charged object and the Eye 02)
• Power source : 9 V DC (006 battery 1pce.)

Specifications

• Model: Eye-02
• Body Size: 123 MMx70 MMx25 MM
• Weight: 200 Gr
• EDP No.: 621603

Technical Specifications

• Netto Weight : 0.300 KG
• Height Demension : 5.000
• Length Demension : 15.000
• Width Demension : 8.000
• Type : ANTI STATIC SCALE
