Product Description

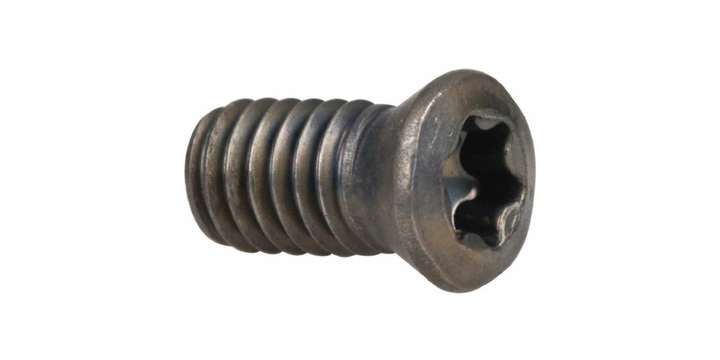

TUNGALOY Part Screws CSTB-4M
- Size A(mm): M4 x 0.7
- Component Model: CSTB-4M
- Dimension φb(mm): 5.5
- Dimension c(mm): 9.5
- Size D(mm): 5.5
- Tightening Torque(Nm): 3.5
- Dimension T T15
- Old Tool Use Insert (Our Standard Hole Specification) -
- Useable Tools Cutting/Grooving: CGW, SGT, SNG Types / TAC Cutting Tool for Outer Diameter: TurnTec, Turning A A Type, MS Type / TAC Cutting Tool: TurnTec, Turning A A Type, Stream Jet Bar, Stream Jet Bar Mini, S type / TAC Mill / Thread Cutting: ST Type / Tooling System: TAC Cartridge SP Type, TAC Cartridge A Type, TAC Boring Bar Cutting Tool, Top-Borer Cutting Tool, TAC E-Z Set / Cutting Tools for Small Lathes: J Type, S Type / TAC Drill
US $ 4.38
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
/ EA
