Schneider NSYTRV62 6mm 41A single-level 1x1 Screw - Linergy Tr Linergy Passthrough Terminal Block
Schneider NSYTRV62 6mm 41A single-level 1x1 Screw - Linergy Tr Linergy Passthrough Terminal Block
| Brand: | SCHNEIDER ELECTRIC |
| Model: | NSYTRV62 |
Product Description

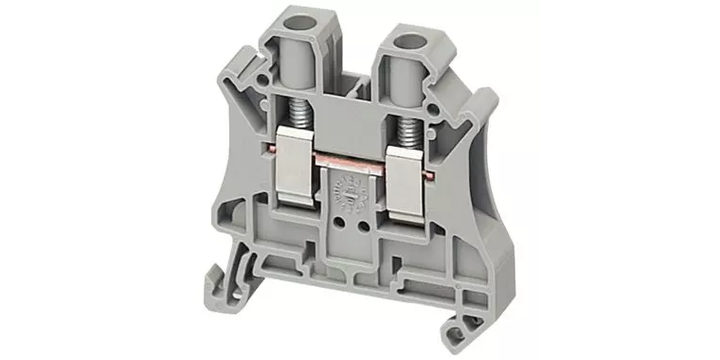

Schneider NSYTRV62 6mm 41A single-level 1x1 Screw - Linergy Tr Linergy Passthrough Terminal Block
- Linergy TR is terminal block for Linergy.
- It belongs to linergy passthrough terminal block with 6 mm nominal cross section.
- The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD.
- The rated current is 41A conforming to EN/IEC 60947-7-1, 50A conforming to CSA/cURus and 40A conforming to ATEX Exe II Ex II 2 GD.
- It has grey surface treatment.
- Mounting by clip-on and sideways connection by single-level 1x1 screw terminals.
- It could be connection and disconnection by screwdriver.
- It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys.
- Sold in lots of 50 units.
- Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21.
- Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
- It is compliant with Green Premium (RoHS/REACH).
US $ 2.26
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 2.26 |
