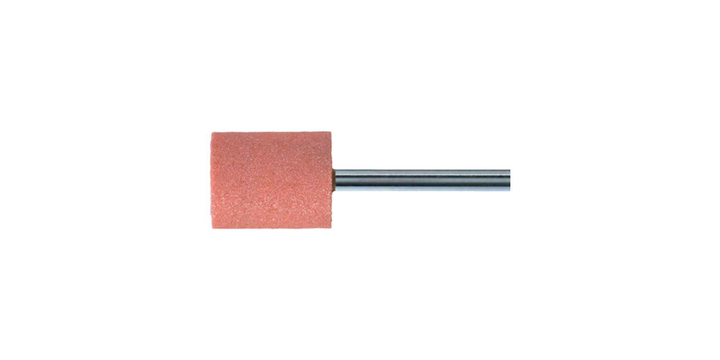

Pferd Mounted Point WR1320/6 AR80O5V 100912
Benefits
· These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
· Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.
Features
· Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
· Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
· The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
· Application examples :
· Deburring of steel castings.
· Chamfering in preparation for welding.
· Contour a nd edge grinding on forgings.
Specifications
· Grit size : 80
· Shank diameter : 6 mm
· Shank length : 40 mm
· Burrs Diameter : 13 mm
· Burrs Thickness : 20 mm
· Max. Speed : 73.400 Rpm
Technical Spec
- Netto Weight : 0.017 KG
- Unit Demension : 40 X 13 X 13 MM
- Height Demension : 13.000
- Length Demension : 40.000
- Width Demension : 13.000
- Type : Cylindrical With Radius
- Dimension uom : 40.000
