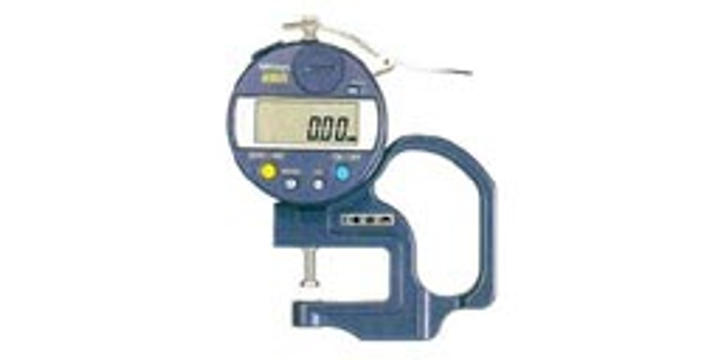

Mitutoyo Thickness Gage 10/0.01MM 547-315
Product Description
MITUTOYO Thickness Gage 10/0.01MM 547-315
Thickness Gage 10/0.01MM 547-315
Benefits
- Dial thickness gages can quickly measure the thickness of thin products such as paper and felt.
- Contact point and anvil are both made of ceramic : rust-free (547-401 is excluded.)
- Integrated molding of the bezel an d crystal ensures protection against water and oil penetration via the front face.
- Suitable for measuring narrow grooves.
- Measuring face of the contact point and anvil are blade-shaped (thickness : 1 MM).
Features
- Quickly measure the thickness of thin products
- Rust-free Contact point
- Protect against water and oil
Specifications
- Type : Thickness Gage Digital
- Interface SPC : Yes
- Resolution : 0.01 MM
- Range : 0-10 MM
Technical Spec
- Netto Weight 0.270 KG
- Unit Dimension 167 X 190 X 48 MM
- Height Dimension 4.800
- Length Dimension 19.000
- Width Dimension 16.700
- Type Digimatic
- Lead Time 130
- Dimension uom 19.000
- Resolution 0.01 MM
US $ 423.24
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
