Mitutoyo Setting Ring 87MM 177-318
Mitutoyo Setting Ring 87MM 177-318
Product Description

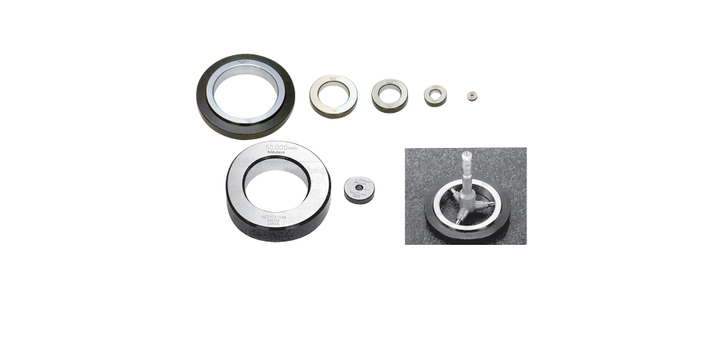

MITUTOYO Setting Ring 87MM 177-318

Benefits

  • Used for quick and accurate setting of dial bore gages, Holtest, and inside micrometers.

Features

  • Setting inside of unit measurement

Specifications

  • Nominal size diameter (Inside diameter) : 87 MM
  • Outside Diameter : 140 MM
  • Thickness : 25 MM
  • Type : A
  • Toleranc e between the nominal size and the actual diameter : +/- 20 Micrometer
  • Uncertainty of marked diameter value : +/- 1.5 Micrometer Roundness/Cylindricity : 1.5 Micrometer
  • Distance from the si de face H : 4.2 MM
  • Size of warranted calibration surface K : 16.6 MM

Technical Spec

  • Netto Weight : 1.850 KG
  • Unit Demension : 160 X 160 X 35 MM
  • Height Demension : 3.500
  • Length Demension : 16.000
  • Width Demension : 16.000
  • Material : Steel
  • Type : Ring Gage
  • Dimension uom : 16.000
US $ 448.69
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
